Rk3568b2 Arm Industrial Controller With 1tops Npu 2 0ghz 4rs485 4di 4do For Industry 4 0 - China

1 - Product Selection

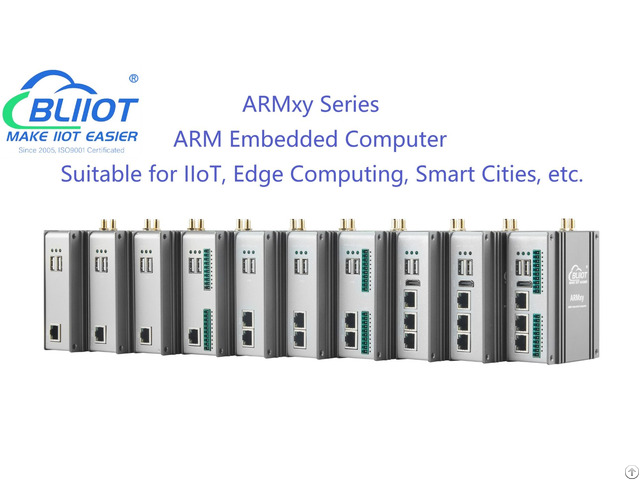

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customizeROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed.

Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.

Product naming convention

Product Series - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number ARMxy BL410 Model List

Model ETH USB HDMI X board IO Slot Y board IO Slot Dimension

BL410 1x100M 2 X 1x6PIN X 42x83x110mm

BL410A 1x100M 2 X 1x20PIN X 42x83x110mm

BL410B 1x100M 2 X 1x20PIN 2 48x83x110mm

BL410C 1x100M 2 X 1x10PIN X 42x83x110mm

BL411 2x100M 2 X 1x6PIN X 42x83x110mm

BL411A 2x100M 2 X 1x20PIN X 42x83x110mm

BL411B 2x100M 2 X 1x20PIN 2 48x83x110mm

BL412 3x100M 2 1 1x6PIN X 42x83x110mm

BL412A 3x100M 2 1 1x20PIN X 42x83x110mm

BL412B 3x100M 2 1 1x20PIN 2 48x83x110mm 2 - Overview

The ARMxy BL410 series is a versatile industrial ARM controller designed for flexible I/O configuration.

It is based on the Rockchip RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz.

The device is equipped with 8/16/32GB eMMC storage and various combinations of 1/2/4GB LPDDR4X RAM.

Additionally, it includes a built-in 1TOPS computing power Neural Processing Unit (NPU) for supporting deep learning tasks.

The BL410 series ARM embedded computer offers a rich array of interfaces including

3 x 100M Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series IO board, 2 x optional Y series IO boards.

These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control.

The BL410 also supports hardware decoding of 1080P@60fps videos.

Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.

The BL410 series ARM embedded computers support Linux-4.19.232, Linux-RT-4.19.232 kernels, Debian-10.13, Android 13, Docker containers, Node-RED, and Qt-5.15.2 for graphical interface development tools.

In addition, BL410 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamlessintegration with various mainstream IoT cloud platforms and industrial SCADA software.

Users can leverage the BLRAT for remote access and maintenance of the BL410 embedded computer.

Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL410.

The BL410 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability.

It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.

This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.

ARMxy BL410 SOM Model List

You can select the appropriate ROM, RAM, and temperature grade based on your requirements.

Model MCU Clock Speed Kernel NPU eMMC DDR4 Temperature

SOM410 RK3568J 1.8GHz 4 x A55 1TOPS 8GByte 1GByte -40~85°C

SOM411 RK3568J 1.8GHz 4 x A55 1TOPS 16GByte 2GByte -40~85°C

SOM412 RK3568J 1.8GHz 4 x A55 1TOPS 32GByte 4GByte -40~85°C

SOM413 RK3568B2 2.0GHz 4 x A55 1TOPS 4GByte 1GByte 0~70°C

SOM414 RK3568B2 2.0GHz 4 x A55 1TOPS 8GByte 2GByte 0~70°C

SOM415 RK3568B2 2.0GHz 4 x A55 1TOPS 8GByte 4GByte 0~70°C X Series IO Board Model List

You can select the appropriate X series IO board based on your requirements, ensuring that the number of pins on the X series IO board is compatible with the industrial computer's casing.

Model RS232/RS485 CAN DI DO GPIO PIN

X10 2 x x x x 6PIN

X11 x 2 x x x 6PIN

X12 1 1 x x x 6PIN

X13 x x 2 2 x 6PIN

X14 x x 4 x x 6PIN

X15 x x x 4 x 6PIN

X16 x x x x 4 6PIN

X20 4 x x x x 10PIN

X21 3 1 x x x 10PIN

X22 2 2 x x x 10PIN

X23 4 x 4 4 x 20PIN

X24 3 1 4 4 x 20PIN

X25 2 2 4 4 x 20PIN

X26 2 x 8 4 x 20PIN

X27 1 1 8 4 x 20PIN

X28 2 x 12 x x 20PIN

X29 1 1 12 x x 20PIN

X30 x x x x 16 20PIN Y Series IO Board Model List

You can select the appropriate Y series IO board based on your requirements, as the Y series IO modulesare compatible with all Y slots.

When the Y63 is selected, you can not choose second Y-series IO board.

Model Description Model Description

Y01 4DI+4DO, NPN Y41 4AO, 0/4~20mA

Y02 4DI+4DO, PNP Y43 4AO, 0~5/10V

Y11 8DI, NPN Y46 4AO, ±5V/±10V

Y12 8DI, PNP Y51 2RTD, 3-Wire PT100

Y21 8DO, PNP Y52 2RTD, 3-Wire PT1000

Y22 8DO, NPN Y53 2RTD, 4-Wire PT100

Y24 4DO, Relay Y54 2RTD, 4-Wire PT1000

Y31 4AI, single-ended, 0/4~20mA Y56 Resistance measurement

Y33 4AI, single-ended, 0~5/10V Y57 Voltage measurement

Y34 4AI, differential, 0~5/10V Y58 4TC

Y36 4AI, differential, ±5V/±10V Y63 4 RS485 or RS232
