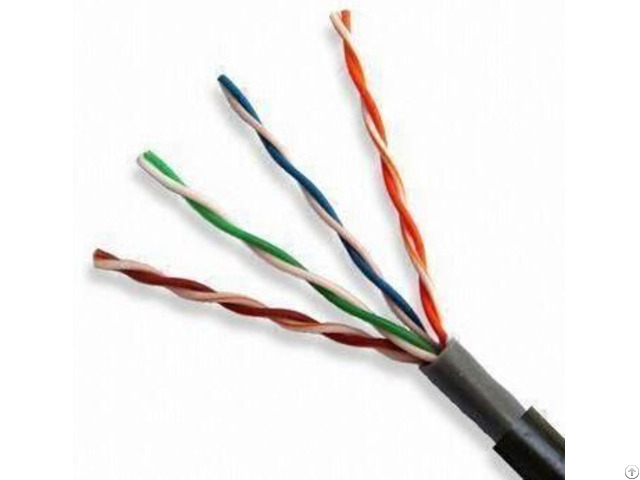

Pvc Pe 4 Pair Utp Cat5e With Messenger Double Sheath 0 50mm Bc 0 51 Cca Conductor - China
price: contact company for price
Includes:
BC conductor PE insulation Messenger Inner sheath Overall sheath
Conductor:
Material: solid bare copper Number of pairs: 4 pairs AWG: 24 Conductor diameter: 0.50 ±0.003mm
Insulation:
Material: HDPE and FRPE Diameter: 0.924 ±0.005mm Average thickness: 0.212mm Minimum point thickness: 0.2095mm
Messenger: Ø1.16mm steel wire Inner cable sheath:
Material: PVC LSOH Nominal diameter: 5.0 ±0.2mm Average thickness: 0.55mm Minimum point thickness: 0.54mm
Outer cable sheath:
Material: PE Nominal diameter: 7.0 ±0.2mm Average thickness: 1.0mm Minimum point thickness: 0.95mm
Messenger sheath:
Material: PE Nominal diameter: 3.2 ±0.1mm Average thickness: 1.0mm Minimum point thickness: 0.95mm
Operating temperature: -20 to 75°C Minimum bend radius (install): (OD) 8mm Flame test: CMX, CM, CMR and IEC60332-1 Reference standard: TIA/EIA568B and IEC/ISO11801
Company Contact:
- Posted By: Jiaxing Aoyipu Data Cable Co., Ltd.
- Phone: 057386671333
- Address: No.6 Shiquan Industrial Park, Haiyan County, Jiaxing City, Zhejiang Province, Jiaxing City, Zhejiang , China
- Email:
- Website: https://www.aypcable.com/
Published date: March 16, 2022
- Business Description: Jiaxing Aoyipu Data Cable Co., Ltd. was founded in 2006 - Its headquarters is located in the Yangtze River Delta Economic Circle, Zhejiang Haiyan Industrial Park, 18 kilometers away from Hangzhou Bay Bridge, and 100 kilometers away from Hangzhou, Shanghai, Suzhou, and Ningbo.
The company has more than 200 sets of modern production workshops, various production equipment, and inspection equipment.
It adopts world-advanced production technology and ERP modern management method.
It covers an area of 16,000 square meters.
There are more than 100 employees and a group of skilled technicians with middle and senior titles.
