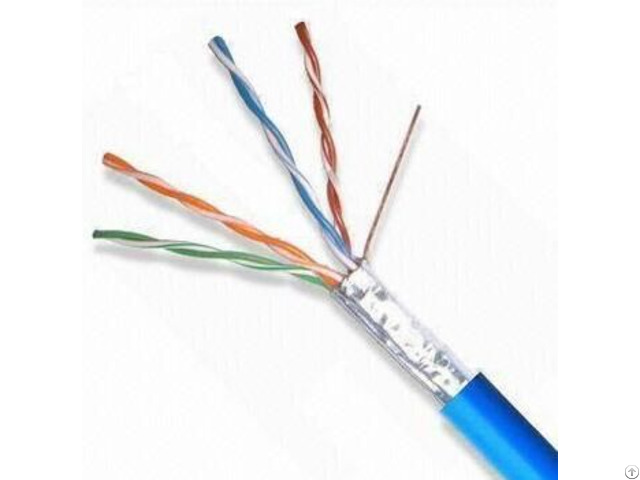

Pair Ftp Cat 5e Cable With 0 51mm Bc 0 51cca Conductor And 8mm Minimum Bend Radius - China
price: contact company for price
Conductor:
Material: solid bare copper Number of pairs: 4 pairs AWG: 24 Conductor diameter: 0.51±0.003mm
Insulation:
Material: PE Diameter: 1.02±0.005mm Average thickness: 0.255mm Minimum point thickness: 0.2495mm
Separator: PET Drain wire: 0.40mm TC Overall screen: aluminum mylar shield (superposition rate: 25%) Jacket rid cord: optional Sheath:
Material: PVC or LSZH Nominal diameter: 5.8±0.2mm Average thickness: 0.55mm Minimum point thickness: 0.545mm
Includes:
BC conductor Insulation Separator Drain wire AL Mylar shield Rip cord PVC sheath
Operating temperature: -20 to 75°C Minimum bend radius (install): (OD) 8mm Flame test: CMX, CM, CMR and IEC60332-1 Reference standard: TIA/EIA568B and IEC/ISO11801
Company Contact:
- Posted By: Jiaxing Aoyipu Data Cable Co., Ltd.
- Phone: 057386671333
- Address: No.6 Shiquan Industrial Park, Haiyan County, Jiaxing City, Zhejiang Province, Jiaxing City, Zhejiang , China
- Email:
- Website: https://www.aypcable.com/
Published date: March 16, 2022
- Business Description: Jiaxing Aoyipu Data Cable Co., Ltd. was founded in 2006 - Its headquarters is located in the Yangtze River Delta Economic Circle, Zhejiang Haiyan Industrial Park, 18 kilometers away from Hangzhou Bay Bridge, and 100 kilometers away from Hangzhou, Shanghai, Suzhou, and Ningbo.
The company has more than 200 sets of modern production workshops, various production equipment, and inspection equipment.
It adopts world-advanced production technology and ERP modern management method.
It covers an area of 16,000 square meters.
There are more than 100 employees and a group of skilled technicians with middle and senior titles.
