1 - Overview

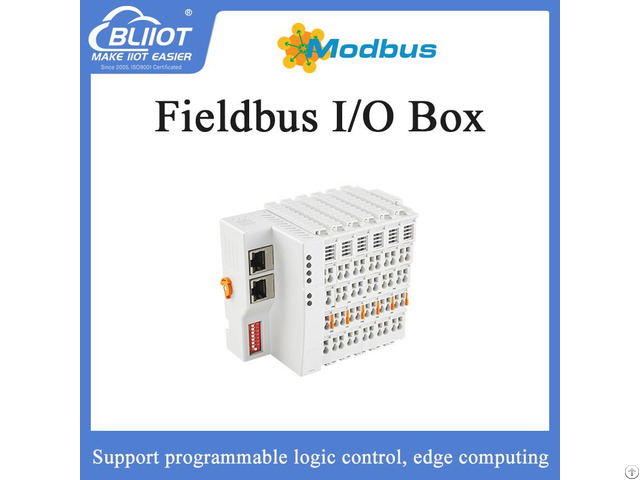

BL200 coupler is a data acquisition and control system based on a powerful 32-bit microprocessor design with Linux operating system and Modbus protocol support for quick access to on-site PLCs, SCADA, and ERP systems with built-in logic control, edge computing applications for IIoT and industrial automation applications.

The BL200 distributed I/O system consists of 3 parts: Coupler, I/O modules and terminal modules.

The communication between the node and the field devices (eg PLC) takes place via the Ethernet interface of the fieldbus coupler, and the communication between the fieldbus coupler and the I/O modules takes place via the local bus.

The two Ethernet interfaces are internally integrated with a switch function, which can establish a linear topology without the need for additional switches or hubs.

The system needs to use the power module to provide 24VDC system voltage and 24VDC field voltage.

Since two independent power supplies are used, the field voltage input interface and system voltage input interface of BL200 couplers are electrically isolated from each other.

When assembling fieldbus node modules, each I/O module can be arranged in any combination, and it is not required to be grouped by module type.

A terminal module must be plugged into the end of a fieldbus node to ensure correct data transmission.

2 - Typical Application

High reliability, easy expansion, easy setting, and convenient network wiring, these capabilities let users efficiently adapt the BL200 I/O system to a variety of complex industrial solutions.

The I/O system is widely applicable to a variety of industrial solutions, such as Internet of Things, smart factories, smart cities, smart medical care, smart homes, smart transportation, data center environment monitoring, electric power, oil monitoring, automobiles, warehousing and logistics and other industries.

3 - Features

Each I/O system can have a maximum of I/O 32 modules.

Support Modbus TCP protocol.

Support programmable logic control, edge computing.

The field side, the system side and the bus side are electrically isolated from each other.

Support 2 X RJ45 interface, integrated switch function, can establish line topology, without the need for additional switches or hubs.

Convenient wiring connection technology, screw-free installation.

Description Model Channel Type

Modbus-TCP I/O Coupler BL200 / Modbus TCP

Profinet I/O Coupler BL201 / /

EtherCAT I/O Coupler BL202 / /

Ethernet/IP I/O Coupler BL203 / /

OPC UA EdgeIO Controller BL205 / /

MQTT EdgeIO Controller BL206 / /

MQTT+OPC UA+Modbus TCP BL206Pro / /

BACnet/IP I/O Coupler BL207 / /

BACnet/IP+MQTT+OPC UA BL207Pro / /

8CH DI M1081 8 NPN (low level trigger)

8CH DI M1082 8 PNP (high level trigger)

16CH DI M1161 16 NPN (low level trigger)

16CH DI M1162 16 PNP (high level trigger)

4CH DO M2044 4 Relay

8CH DO M2081 8 PNP

8CH DO M2082 8 NPN

16CH DO M2161 16 PNP

16CH DO M2162 16 NPN

4CH AI Single-Ended M3041 4 0-20mA/4-20mA 4CH AI Single-Ended M3043 4 0-5V/0-10V 4CH AI Differential M3044 4 0-5V/0-10V 4CH AI Differential M3046 4 ±5V/±10V 4CH AO M4041 4 0-20mA/4-20mA 4CH AO M4043 4 0-5V/0-10V

4CH AO M4046 4 ±5V/±10V 2CH RTD M5021 2 3Wire PT100

2CH RTD M5022 2 3Wire PT1000

2CH RTD M5023 2 4Wire PT100

2CH RTD M5024 2 4Wire PT1000

4CH TC M5048 4 TC(B/E/J/K/N/R/S/T)

2CH RS485 M6021 2 RS485

2CH RS232 M6022 2 RS232

1CH RS485, 1CH RS232 M6023 2 RS485+RS232

Power module M7011 / /

Terminal module M8011 / /
