Bliiot Armxy Computer T113 I Dual Core Arm Cortex A7 Support Node Red For Iot Applications - China

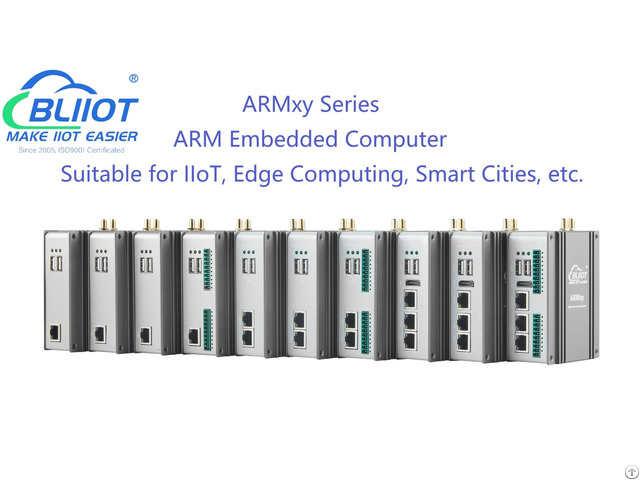

The ARMxy BL330 series is a versatile industrial ARM controller designed for flexible I/O configuration.

It is based on the T113-i dual-core ARM Cortex-A7 + XuanTie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor.

This industrial-grade computer features an ARM Cortex-A7 processor with clock speed of up to 1.2GHz.

It is equipped with either 256Mbyte NAND Flash or 4/8GByte eMMC storage options and offers various combinations of 128M/256M/512M/1GByte DDR3 RAM and ROM.

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed.

Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.

Product naming convention

Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number

For example, if we had a specific product configuration:

Host Model: BL330

SOM Model: SOM330

X Board Model: X10

The complete product name would be:

BL330-SOM330-X10

Means 1 Ethernet port, 256MB NAND Flash, 256MB DDR3 RAM, and 2 RS485 ports.

If you need to add WiFi, then you would append "W" to the host model number.

For example: BL330W-SOM330-X10

If you need to add a 4G module, you would append "L" to the host model number.

For example: BL330L-SOM330-X10
