Armxy Embedded Computer T113 I Dual Core Arm Cortex A7 With Rs485 232 Di Do - China
price: 78.00 Dollar US$
Typical Application Areas Industrial Control
Edge Computing
Data Acquisition Energy Storage Systems
Photovoltaic Power Generation
IoT Gateway
Rail Transportation

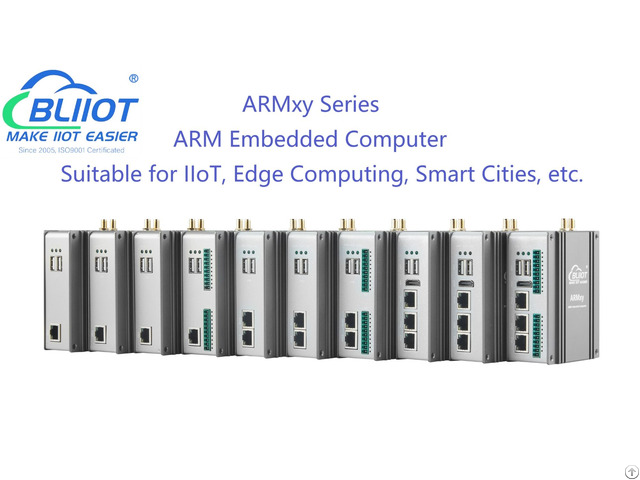

Smart Devices The ARMxy BL330 series is a versatile industrial ARM controller designed for flexible I/O configuration.
It is based on the T113-i dual-core ARM Cortex-A7 + XuanTie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor.
This industrial-grade computer features an ARM Cortex-A7 processor with clock speed of up to 1.2GHz.
It is equipped with either 256Mbyte NAND Flash or 4/8GByte eMMC storage options and offers various combinations of 128M/256M/512M/1GByte DDR3 RAM and ROM.
The BL330 series ARM embedded computer offers a rich array of interfaces including
1 x 1000Mhz Ethernet port, 2 x optional 100Mhz Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series IO board, 2 x optional Y series IO boards.
These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control.
The BL330 also supports hardware decoding of 1080P@60fps videos.
Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.
The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed.
Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number.
Company Contact:
- Posted By: BLIIOT
- Phone: 075529451836
- Address: 2F, A2 Building, Fuhai Information Port, Xinhe Community, Fuhai Street, Baoan, Shenzhen, China, Shenzhen , Guangdong , China
- Email:
- Website: https://www.bliiot.com/
Published date: July 31, 2024
- Business Description: Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of Industrial IoT, Industrial Edge Computing, Industrial Automation Data Acquisition and Communication devices.
Beilai is the pinyin of barium-rhenium in Mandarin.
Barium is a lively element, and rhenium is the last element discovered by human beings.
The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.
