Waist Type Tower - China

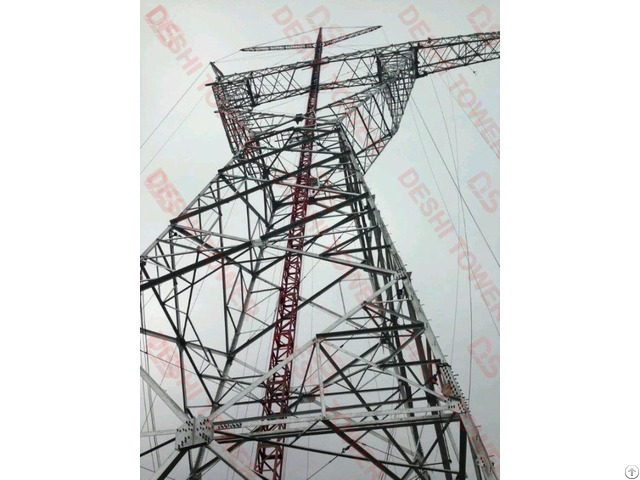

The “waist type” tower refers to a specific design of electrical transmission tower that is characterized by its distinctive narrowing in the middle, resembling a waist.

This design is one of several structural approaches used to support overhead power lines.

Product waist type tower

Shape lattice

Material Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm².

OR Q420 Q460 ASTM A572 GR65, GR50, SS400

Electric Voltage 10kv, 11kv, 32kv, 33kv, 35kv, 65kv, 66kv, 90kv, 92kv, 110kv, 115kv, 132kv, 220kv, 230kv, 300kv 320kv, 330kv, 345kv, 380kv, 400kv 500kv, 750kv, 765kv, 800kv, 850kv, 1000kv

Surface treatment Hot dip galvanized Following ASTM A 123, BS729 or as client required.

connection bolt connection

Standard ISO 9001: 2008

Height: below 60 meters

Surface treatment: galvanization and color painted

Welding Standard AWS (American Welding Society ) D 1.1

Production Process Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating, painting →Recalibration →Packages

Packages Packing with plastic paper, steel box or according to client’s request.

Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.

Transmission tower design adheres to ASCE/SEI standards.

Telecommunication tower design follows ANSI/TIA-222 standards.

We are not just manufacturers and suppliers, but also your technical support and partners.
