Monopole Transmission Line Steel Tower - China

A monopole transmission line steel tower is a specific type of structure used primarily for electrical power transmission over long distances.

Unlike traditional lattice towers, which are made from a network of steel supports forming a wide base, monopole towers consist of a single tall steel tube or pole that supports the transmission lines.

This design provides a streamlined and minimalistic appearance and requires less ground space, making it a preferred choice in densely populated or environmentally sensitive areas.

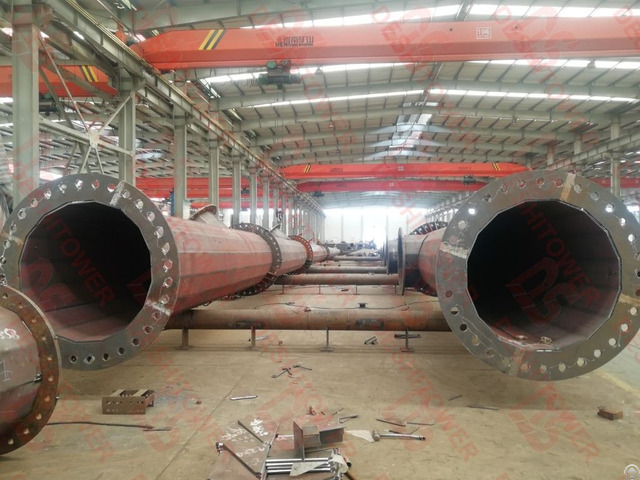

Product Monopole transmission line steel tower

Shape Polygonal or Conical

Material Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm².

OR Q420 Q460 ASTM A572 GR65, GR50, SS400

Electric Voltage 6kv, 10kV, 33kv, 35kv, 65kv, 66kv, 110kv, 132kv, 220kv, 230kv, 380kv etc.

Surface treatment Hot dip galvanized Following ASTM A 123, BS729 or as client required.

connection Slip joint, flanged connected

Standard ISO 9001: 2008

Welding Standard AWS (American Welding Society ) D 1.1

Production Process Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating, painting →Recalibration →Packages

Packages Packing with plastic paper, bundle, wooden box or steel box or according to client’s request.

Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.

Transmission tower design adheres to ASCE/SEI standards.

Telecommunication tower design follows ANSI/TIA-222 standards.

We are not just manufacturers and suppliers, but also your technical support and partners.
