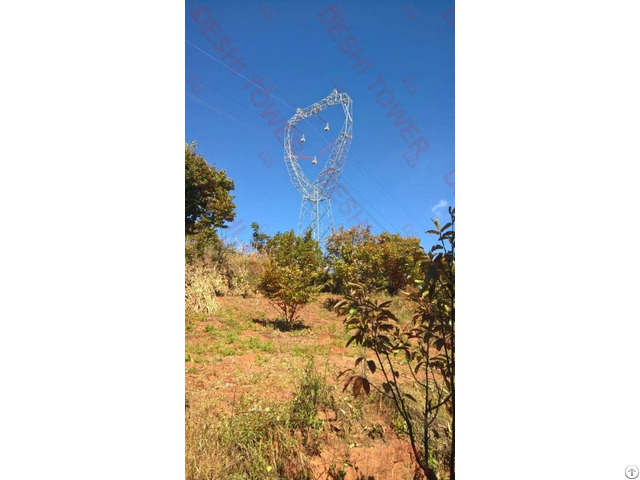

High Voltage Transmission Tower - China

High voltage transmission towers are critical structures in the electrical power distribution network, designed to carry electricity over long distances at high voltages.

These towers ensure that electrical power generated at power stations is efficiently transmitted to substations and then distributed to consumers.

They play a pivotal role in the energy grid by minimizing energy loss and maintaining the reliability of the power supply.

Key Features of High Voltage Transmission Towers:

Structure and Materials: These towers are generally made from steel or aluminum due to the materials’ strength, durability, and resistance to environmental factors.

The structures can be extremely tall, often ranging from 50 to 150 meters in height, to ensure safety clearances and to accommodate the high voltages they carry.

Design: The most common design is the lattice type, characterized by a web-like network of braces and cross-beams which provides strength while minimizing material use and wind resistance.

There are also tubular and monopole designs that are less visually intrusive but more costly.

Voltage and Capacity: Transmission towers are built to handle very high voltages, typically ranging from 115 kV to 765 kV.

The design of the tower varies depending on the voltage it is meant to transmit, with higher voltages requiring more robust structures with greater height and wider span between towers.

Installation and Functionality:

Installation: Erecting these towers is a complex and labor-intensive process that requires detailed geographical and engineering planning.

The installation involves laying down deep foundations, assembling the tower components (often onsite), and using heavy machinery to erect the towers.

Safety and precision are crucial during this process to ensure structural stability and worker safety.

Functionality: These towers are equipped with insulators made from materials like porcelain or composite polymers, designed to handle high voltages while preventing current leakage to the ground.

They also typically have shielding wires at the top to protect the lines from lightning strikes.

Importance and Impact:

Energy Efficiency: By enabling the transmission of electricity at high voltages, these towers reduce the energy lost as heat during transmission, making the process more efficient and cost-effective.

Grid Stability: They are essential for the stability of the power grid, facilitating the transfer of electricity across regions and balancing supply and demand across different areas.

Environmental Considerations: While necessary, these towers often raise environmental and aesthetic concerns, especially when they need to be erected in or near protected, scenic, or residential areas.

Challenges and Innovations:

Public Perception: Transmission towers can be seen as eyesores, and their construction may face opposition from local communities.

Visual impact assessments and community engagement are important components of the planning process.

Technological Advancements: Innovations such as compact tower designs, use of advanced materials for better performance, and integration of smart grid technology are helping to address challenges related to efficiency, reliability, and environmental impact.

High voltage transmission towers are indispensable for modern life, ensuring that electricity generated in remote power plants can be delivered to urban centers and rural areas alike.

Their design, construction, and maintenance are key to achieving a balance between energy needs and environmental stewardship.

Product high voltage transmission tower

Shape lattice

Material Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm².

OR Q420 Q460 ASTM A572 GR65, GR50, SS400

Electric Voltage 10kv, 11kv, 32kv, 33kv, 35kv, 65kv, 66kv, 90kv, 92kv, 110kv, 115kv, 132kv, 220kv, 230kv, 300kv, 320kv, 330kv, 345kv, 380kv, 400kv 500kv, 750kv, 765kv, 800kv, 850kv, 1000kv, 1100kv

Surface treatment Hot dip galvanized Following ASTM A 123, BS729 or as client required.

connection bolt connection

Standard ISO 9001: 2008

Height: below 60 meters

Surface treatment: galvanization and color painted

Welding Standard AWS (American Welding Society ) D 1.1

Production Process Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating, painting →Recalibration →Packages

Packages Packing with plastic paper, steel box or according to client’s request.

Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.

Transmission tower design adheres to ASCE/SEI standards.

Telecommunication tower design follows ANSI/TIA-222 standards.

We are not just manufacturers and suppliers, but also your technical support and partners.
