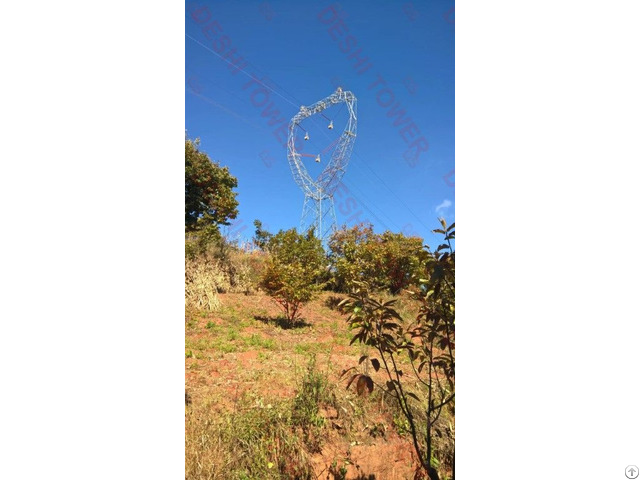

High Tension Cable Tower - China

A high tension cable tower, also commonly referred to as a high-voltage transmission tower, is a crucial structure in the distribution of electrical power across vast areas.

These towers are designed to carry high-voltage electrical cables, facilitating the efficient transmission of electricity from power generation sites to consumers in urban and rural settings.

Key Features of High Tension Cable Towers:

Structure and Materials: Typically made from steel or aluminum, these towers feature a tall, sturdy lattice design that provides the necessary strength to support large spans between towers and the weight of the cables, while also resisting wind and weather conditions.

Design Variations: Depending on the voltage and the number of cables, the design of these towers can vary.

Common designs include monopole, lattice (which can be triangular or square at the base), and guyed structures.

Each design choice balances factors like cost, terrain, and aesthetic impact.

Insulation and Safety: High tension cable towers use robust insulators, usually made of ceramic or glass, to prevent electrical discharge through the tower structure to the earth.

This is critical for maintaining safety and functionality of the power transmission network.

Installation and Operational Aspects:

Installation Process: Erecting these towers involves several steps including foundation laying, structural assembly, and stringing of cables with tensioning to ensure they do not sag excessively.

This process demands precision and planning to address geographical and environmental constraints.

Operational Efficiency: High tension cable towers are strategically placed to form an efficient network that minimizes transmission losses.

The high altitude of the cables also helps in reducing the risk of interference with local flora and fauna.

Benefits:

Long-Distance Transmission: High tension towers enable the transmission of electricity over long distances with minimal loss of energy, which is crucial for connecting remote power generation sites with major consumption areas.

Durability and Low Maintenance: The construction materials and design ensure that these towers are durable and require minimal maintenance, which is cost-effective over their operational lifespan.

Adaptability: The network of towers can be expanded or adapted based on the changing demands of the power grid or to integrate new energy sources.

Challenges:

Environmental and Visual Impact: The installation of high tension cable towers often faces opposition due to their significant visual impact and potential disruption to local ecosystems and wildlife habitats.

High Initial Investment: The cost of constructing these towers is considerable, involving not only materials and labor but also extensive planning to mitigate environmental impact and navigate regulatory approvals.

Maintenance and Safety: While generally low maintenance, the towers do require regular inspections and upkeep to ensure structural integrity and address any potential failures of components, especially the insulators and cables.

High tension cable towers play an indispensable role in the modern electrical grid, balancing the need for efficient energy distribution with the challenges of environmental stewardship and technological maintenance.

Product high tension cable tower

Shape lattice

Material Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm².

OR Q420 Q460 ASTM A572 GR65, GR50, SS400

Electric Voltage 10kv, 11kv, 32kv, 33kv, 35kv, 65kv, 66kv, 90kv, 92kv, 110kv, 115kv, 132kv, 220kv, 230kv, 300kv, 320kv, 330kv, 345kv, 380kv, 400kv 500kv, 750kv, 765kv, 800kv, 850kv, 1000kv, 1100kv

Surface treatment Hot dip galvanized Following ASTM A 123, BS729 or as client required.

connection bolt connection

Standard ISO 9001: 2008

Height: below 60 meters

Surface treatment: galvanization and color painted

Welding Standard AWS (American Welding Society ) D 1.1

Production Process Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating, painting →Recalibration →Packages

Packages Packing with plastic paper, steel box or according to client’s request.

Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.

Transmission tower design adheres to ASCE/SEI standards.

Telecommunication tower design follows ANSI/TIA-222 standards.

We are not just manufacturers and suppliers, but also your technical support and partners.
