1 - Type of molten steel furnace :

The molten steel furnace is a power-saving type product, which adopts a half-bridge parallel inverter intermediate frequency power supply (voltage resonance, whether the electric furnace is cold state, hot state, plus half charge or full material, the half bridge parallel inverter can output the rated Power, power factor is constant at 0.9 6 .

) The molten steel furnace is safe and reliable, in line with national standards and related regulations.

The molten steel furnace has the advantages of high automation level, advanced technology, mature, accurate and reliable control, mature manufacturing process, safe and stable operation, perfect protection system, reasonable layout and convenient management and maintenance.

It has the characteristics of fast melting speed, low energy consumption and stable and reliable operation.

2 - The composition range of this molten steel furnace :

Transformer → secondary copper discharge → intermediate frequency power supply → capacitor cabinet → furnace body → hydraulic tilting furnace system → remote control box → closed loop cooling tower → water cooled pipeline.

50T medium frequency induction heating melting furnace technical parameters

power supply Working form: an inverter connected in parallel (SCR)power supply 24 four-phase pulse (a two electric furnace) Rectified form: 12 phase 24 pulse Output power: 2 5 00 0 KW Power efficiency ≥98% Start mode: variable frequency buffer start Startup rate: 100% (including heavy load) Rated frequency: 3 0 0Hz -500Hz AC voltage: 1500 V DC voltage: 2000 V IF voltage: 3000v DC current: 2500 A X 4 AC current: 8000 A Input frequency: 50Hz 1500v rectifier 4 way parallel, Inverter form: inverter parallel Dimensions: 6800 mm × 20 00 mm × 2120 mm ( length × width × height ) Weight: 5000 KG or so Circulating water volume: closed - loop water cooling tower ZXZ-400T

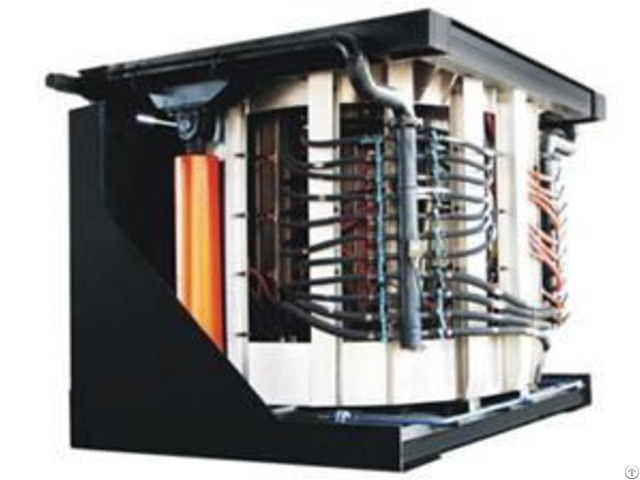

Furnace body Rated capacity: 45 0 0 0KG Maximum capacity: 50000 KG Rated power: 2 50 00KW Frequency: 300 Hz Power factor: ≥ 0.9 2 Working mode: one electric two furnace Melting time : about 120 minutes / furnace Working temperature: 1 700 °C Loading height: 1500mm hoop height: 3200mm Loading diameter: 1800 mm (upper mouth) ring inner diameter: 2200mm furnace ring copper tube is 40x70x8mm Loading diameter: 1600 mm (lower) Ring diameter: 2200mm Maximum angle of the tilting furnace: 95° Lining thickness: 200 mm Outlet mode: side outlet Circulating water volume: 1548 tons / h Tilting method: hydraulic Unit power consumption: 5 60 degrees / ton ± 5% 1600 ° C Working voltage: 3200V Dimensions: 3680 × 4000 × 4200 Weight: 200 00KG or so

transformer Rated Capacity: 12500 KVA two Primary voltage: 10KV Secondary voltage: 1500v One phase: 3 phase Secondary phase number: 6 phase 12 veins Output form: three △ three Y

Hydraulic Hydraulic cylinder: Working pressure: 10Mpa Diameter: Φ 320 plunger cylinder Itinerary: 2 107mm 3 flow rate: >26L/Min Hydraulic station: Working pressure: 10Mpa Hydraulic pump: double pump double Form: Horizontal Capacity: 12 00L

Console Mode: Electric (action indicator)

Cooling water

system One-piece layered water cooling tower ZXZ- 4 00T (40/160) Cooling capacity 2 00000 0kcal/h cooling water volume 400m3/h

Fan power 11 KW × 2 units Fan air volume 125000m3/h ×2

Spray pump 280 m3/h; 5.5 kw

Dimensions mm 55 00×2 6 00×4910 (One machine size)
