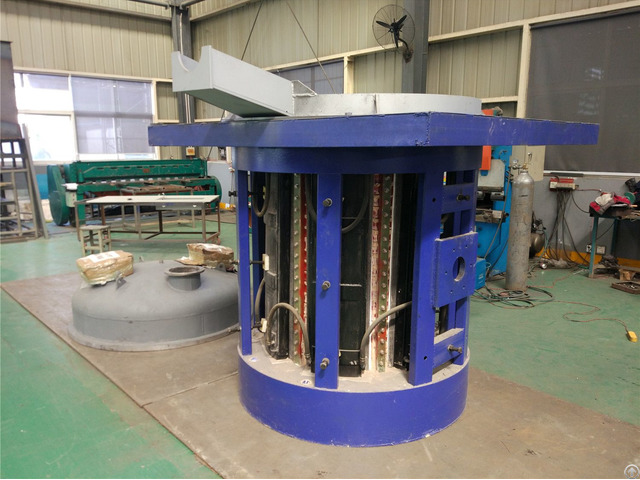

Energy Saving 0 5t Induction Melting Furnace - China

Equipment type :

Device parallel resonant frequency pulse power supply 12 and two steel coreless induction melting furnace and auxiliary systems required for normal operation of the equipment.

0.5 tons of steel induction melting furnace main parameters:

in

frequency

sense

should

melt

Refining

furnace Rated Capacity t 0.5 Maximum capacity t 1 Iron temperature °C 1450~1 8 00 Melting power consumption (hot furnace, molten steel) Kwh/t 570 ± 5% in the case of pure melting .

Melting consumption (heating furnace, molten iron) Kwh/t 560 ± 5% in the case of pure melting .

Melting rate (steel steel) h/t 0.9 cold

but

water Influent flow M3/h ≥ 40 Inlet pressure MPa 0.3 Inlet temperature °C ≤ 32 Backwater temperature °C ≤ 52 Tilting method Hydraulic tilting

whole

flow

change

Pressure

Device Product number ZS -type Voltage combination 10KV/380V/380V

Secondary side Δ /Y double winding, star winding midpoint extraction Transformer capacity KVA 1000kva(two shared) Primary voltage KV 10 ± 5% KV Secondary voltage V 380 × 2 Phase Primary side 3 phase ; secondary side 6 phase connected to intermediate frequency power supply cabinet frequency HZ 50 Connection group DdOY11 ( secondary side line voltage phase difference of 30° ) Short circuit impedance ≥ 9% cooling method ONAN, cooling medium: 25thtransformer oil Pressure regulation method Automatic non-excitation voltage regulation, effectiveness ≥ 98%, Executive standard JB/T8636-1997 "Power Converter Transformer"

Rectifier transformer

The rectifier transformer is used to reduce the primary high voltage to the input voltage suitable for the intermediate frequency power supply.

The device uses a dedicated high-impedance oil-immersed self-cooling rectifier transformer, the model is ZS series.

The primary voltage of the transformer is 10KV and the secondary voltage is 380V .

The rectifier transformer is equipped with a gas relay and a oil temperature relay table, which can be interlocked with the high voltage cabinet.

When the transformer has gas or oil temperature exceeding the standard, the high voltage input can be automatically cut off and an alarm is issued.

in

frequency

Electricity

source

rated power KW 5 00 DC voltage V 102 4 DC A 488 Number of commutating pulses pulse 12 cold

but

water Influent flow M3/h ≥ 15 Inlet pressure MPa 0.25 Inlet temperature °C ≤ 32 Backwater temperature °C ≤ 42 IF voltage V 2400 IF frequency Hz 8 00 can be fine-tuned Power factor C OSφ ≥ 0.95 for any power usage Inverter form Parallel inverter noise dB 85dB Starting success rate 100%
