Bafang 8fun Bbs02 Motor 48v 750w Ebike Kits With Panosonic Battery - China

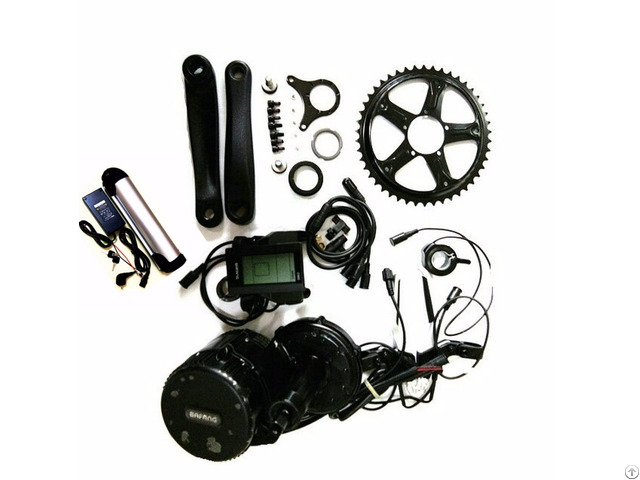

Bafang 8fun BBS02 Latest Controller Crank Motor, 48V 750W Eletric Bicycles Trike Conversion DIY Ebike Kits With Panosonic Bottle Battery 48V 11.6Ah

Bafang Motor Spec:

1 - Voltage: 48V current Limit: 25A

2 - Power: 750W

3 - Motor Weight: 4.8kgs

4 - BB Length: 68mm (Suitable for 68mm or 73mm length BB Bike Modification)

5 - Working Temperature of Dsplay: - 20- 80

6 - Waterproof Grade: IP65

With an integrated speed sensor, this mid-drive motor, which is compatible with a 68-73mm bottom bracket, has a rated power of 750W, a reduction ratio of 1: 21.9 and a maximum torque of 160 N.

m, will provide the rider with great explosive force when starting the system.

Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes.

This motor is black.

HOW DO I KNOW IF THE MID DRIVE CONVERSION KITS WILL FIT MY BIKE?

The Mid Drive Kits are designed to fit bikes with a 68mm (2.68 in.

) or 73mm (2.87 in.

) wide bottom bracket shell and 35mm inside diameter.

This encompasses the vast majority of bikes excluding some newer high end bikes with an Integrated Bottom Bracket, and Fat tire Bikes with a 100mm wide bottom bracket shell.

V 750W BBS02 Bafang Central Motor

Battery Spec:

1 - Rated capacity: 11.6AH

2 - Voltage: 48V

3 - Charging Voltage: 54.6V

4 - Discharge cutoff voltage: 36.4V

5 - 5P13S Li-ion 2.9Ah Panasonic NCR18650PF 18650 cells

6 - Continuous discharge current: 25A

7 - Pulse/Max discharge current 50A

8 - Max charging current : 5A

9 - Charging temperature: 0~45

10 - Dischargeing temperature: -20~55

11 - Operating voltage: 36.4V~54.6V

12 - Diamesion: 91x465mm(diameter X heigh)

13 - Weight of battery pack About kg

Note: Please turn on the power switch when you charging this battery pack.

120W Lithium Ion Charger Specification

Input Voltage: 100-240V

Output Voltage: 54.6V (for 13 series Lithium Ion battery use)

Output Current: 2A

Charging Mode: CC-CV

Intelligent Charger

Super Powerful Charger 2A

Size: 405mm

Weight: 6.5kg

The battery pack fit 250W / 350W / 500W motor and 48 V 750W 48V 1000W bafang mide motor

packing list:

1 pcs 48V 11.6Ah Bottle Panasonic NCR18650PF ebike battery pack

1 pcs 2A charger
