Isuzu Dump Truck - China

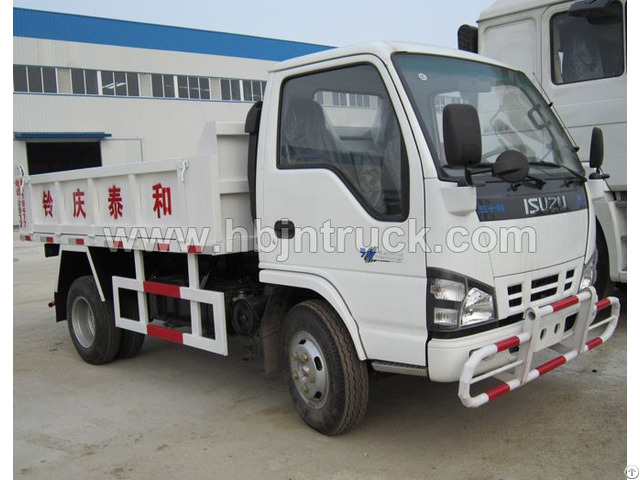

Isuzu Dump Truck

Features:

---Isuzu chassis, Japanese high quality chassis.

---Isuzu engine 4KH1-TCG40, Euro 4 emission standard.

---Dump container capacity 2.2 cubic meters.

---Middle dump.

Vehicle Model JDF5070ZHFAR

Chassis Brand Isuzu

Drive Type 4 x 2, LHD

Wheelbase 2765 mm

Cabin Single row, 2 persons allowed

Overall Dimension (L x W x H) 5035 x 1945 x 2180 mm

GVW 6580 kg

Kerb Weight 2950 kg

Payload Weight 3500 kg

Engine Engine Model 4KH1-TCG40 Engine Make Isuzu Rated Power 88 kw / 120 ps Displacement 2999 ml Type Diesel engine, Euro 4

Brake Oil brake

Gear Box Isuzu MSB

Tire Size 7.00-16

Max Speed 100 km/h

Superstructure Dump Container Dimension

(L x W x H) 3260 x 1780 x 380 mm Container Thickness Bottom 4 mm, side plate 3 mm Dumping Type Middle lifting

Hubei Jiangnan Special Automobile Co., Ltd is a leading manufacturer of special purpose truck in China.

We have a very good cooperation with China famous chassis manufacturers, such as DONGFENG, SINOTRUCK HOWO, JMC, JAC, FOTON, SHACMAN, FAW, BEIBEN.

We mainly engages in the manufacturing of fire trucks, aerial platform trucks, garbage trucks, water trucks, truck with crane, sewage suction trucks the quality meet China CCC and ISO9001: 2008 standard.

Company Contact:

• Posted By: Hubei Jiangnan Special Automobile Co., Ltd

• Phone: 18771385883

• Address: No.1 , Xingguang Industrial Park, Beijiao, Suizhou City, Hubei Province, China

• Email:

• Business Description: Hubei Jiangnan Special Automobile Co., Ltd is a leading manufacturer of special purpose truck in China.

  We have a very good cooperation with China famous chassis manufacturers, such as DONGFENG, SINOTRUCK HOWO, JMC, JAC, FOTON, SHACMAN, FAW, BEIBEN.

  We mainly engages in the manufacturing of fire trucks, aerial platform trucks, garbage trucks, water trucks, truck with crane, sewage suction trucks the quality meet China CCC and ISO9001: 2008 standard.

  Especially of fire fighting truck, we are the approval fire fighting truck manufacturer, fire fighting truck manufacturing qualification must special approved by Chinese government in China.

  Since founded in 1997 we have delivered more than 2,000 trucks to many country and region, our goal is bringing you the best of special purpose trucks with the most competitive price, we assure you of immaculate quality and excellence.
