Dongfeng Truck Mounted Aerial Platform - China

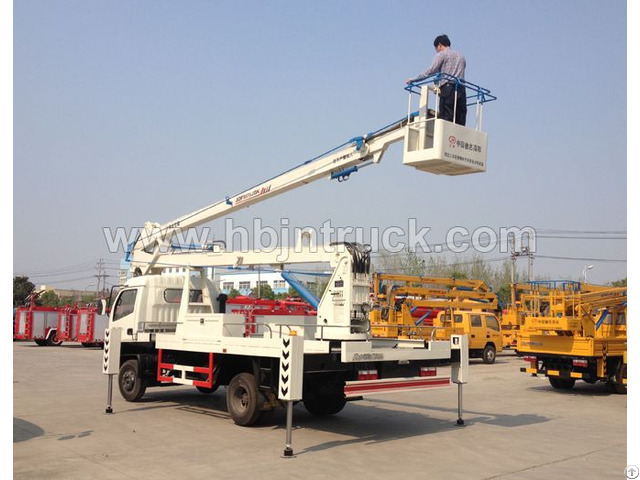

Dongfeng Truck Mounted Aerial Platform

We are China truck mounted aerial platform manufacturers, we manufacture truck mounted aerial platform, truck mounted scissor lift, our truck mounted aerial platform has two types: telescopic boom lift and articulated boom lift.

Truck mounted aerial platform could be used for painting, industry, factories, for working on electric poles, cables or window, statue and wall cleaning.

Features:

---Our truck mounted aerial platform meet ISO9001: 2008 and China CCC standard.

---Articulated boom, max working height 18 meter.

---4 outriggers could be extended seperately or together.

---Bucket rated loaded capacity 200kg

---The crane mounted at the end of boom, max lifting capacity 1000kg.

---Emergency pump assure the security.

More information:

Vehicle Model JDF5070JGK

Chassis Brand Dongfeng

Drive Type 4 x 2, LHD / RHD

Wheelbase 3800 mm

Cabin Single row, 2 persons allowed

Overall Dimension (L x W x H) 8250 x 2320 x 3500 mm

GVW 7490 kg

Kerb Weight 7295 kg

Engine Engine Model CY4102-C3C Engine Make Chaochai Rated Power 88 kw / 120ps Displacement 3856 ml Type Diesel engine, Euro 3

Brake Air brake

Transmission 5 speed forward, 1 reverse

Tire Size 7.50-16

Max Speed 95 km/h

Superstructure Max Working Height 18 m Boom Type Knuckle boom, 3 sections Max Working Radius 7.5 m Hydraulic System Working Pressure 16 MPa Bucket Load 200 kg
