Internal Combustion - China
price: contact company for price

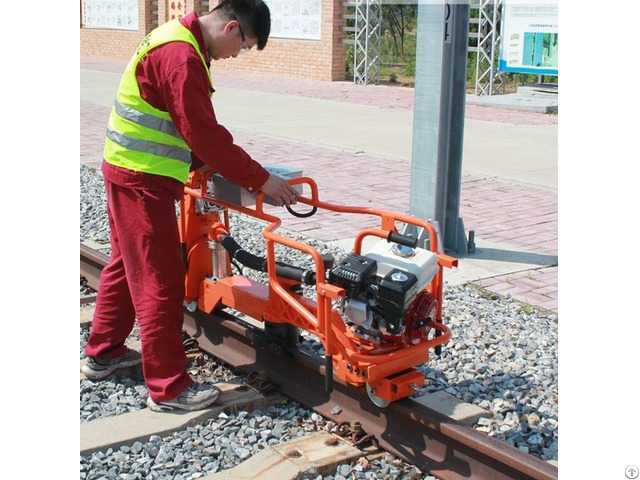

This machine is powered by the M165 two-stroke petrol engine imported from Spain.
It is a small machine used for forming and grinding the rail head welding joints and surface repairs.
It is suitable for rails of 43~75kg/m.
The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.
TECHNICAL DATA
Model NGM-4.8 Engine 2 stroke petrol engine M165 Power 6.0kW Grinding stone speed ≥3900r/min Grinding stone inclination 0~90° Grinding stone feeding stroke 42mm Grinding stone specification φ150xφ55x70mm Fuel tank volume 4.5L Profile wheel span 1000m Feed adjustment accuracy 0.125m Dimensions 1410*500*850mm
Company Contact:
- Posted By: Wuhan linkage track equipment co.,ltd
- Phone: 15071526332
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, wuhan , hubei , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: April 2, 2024
- Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013, We are the leading manufacturer for railway equipment which are being used all over the world.
The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world
Our Products:
- Portable Rolling Track Gauge
- Rail Turnout Tamping Machine
- Portable Digital Rolling Track Gauge
- K1270 Gasoline
- Portable Tamper
