Optical Fingerprint Module Sm 609b - China

Optical Fingerprint Module SM-609B Biometric Hardwares

Biometric OEM Module

OVERVIEW:

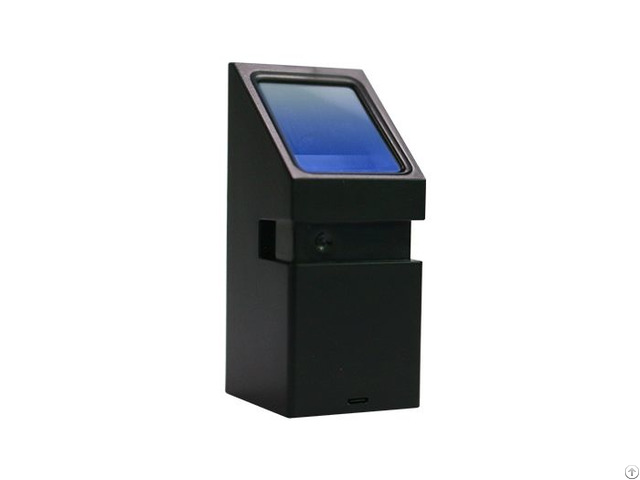

Miaxis Model SM-609B is an integrated Optical Fingerprint Module with adopted advanced CMOS sensor technology, low power consumption&high-perf ormance ARM Cortex-M4 core processor and FLASH etc chips.

The module allows standalone operation with on-board fingerprint image processing, template extraction, fingerprint matching (including 1: 1 and 1: N), template storage and other functions, ideal for various applications that require identity authentication.

OEM Fingerprint Modules FEATURES:

●500 dpi resolution;

●Durable optical sensor surface;

●Miaxis proprietary fingerprint algorithm;

●touch wake-up function;

●work well with wet&dry finger;

●flexible security setting; optical fingerprint module SPECIFICATION: Specification SM-609B

CPU 200MHz, Cortex-M4F

Flash memory 256KB (Expandable up to 512KB)

Product size(L x W x H) 46.1*20.4*21.7mm

Sensor type Optical

Active platen area 12.8*14.4mm

Image Size 256*288 pixel

Image resolution 500 dpi

Grey scale 4 bit

Power-on time ≤200ms

Enrollment time

(Finger touch to template) ≤750ms

1: 1 Verification time 100ms

1: N Matching time ≤1s, N=128

FAR ≤0 - 001 %

FRR ≤1 %

Template size 256 bytes default

Fingerprint capacity 256 templates

ESD immunity ±8kV contact discharge±15kV air discharge

Supply voltage DC 3.8V-7.0V

Supply current <85mA

Supply current Sleep mode ≤10uA

Communication interface UART, 57600 default baud rate

Operating Temperature -10°C to +50°C

Storage Temperature -20°C to +60°C

Operating humidity 20%RH～90%RH

Note: the 1: 1 verification time* is calculated based the time of input template matched to the stored template.

The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm.

Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
