Fbi Certified Single Optical Scanner - China

FBI-certified single optical scanner SM-91M Biometric Hardwares

Fingerprint Scanner

OVERVIEW:

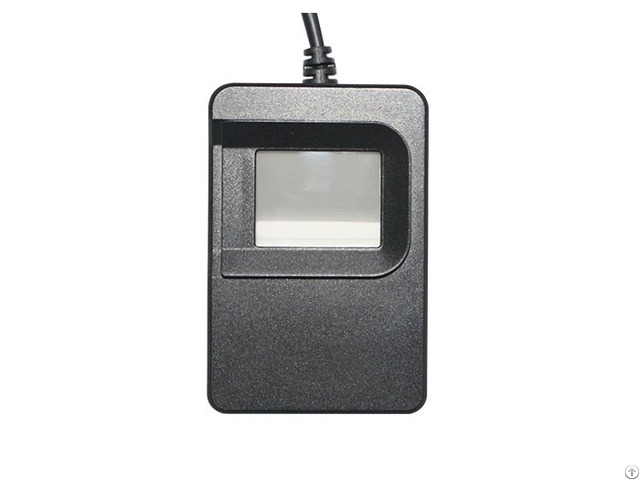

SM-91M device is a FBI PIV&Mobile ID FAP20 certified single optical Fingerprint Scanner.

It's a compact & portable fingerprint collection device for easy integration with new or existing applications.

Powered by USB 2.0/3.0 and supports Windows, Linux and Android operating systems.

Ideal for biometric authentication and personal identity verification programs.

single fingerprint scanner FEATURES:

●500dpi resolution

●Lightweight and durable design for portable use

●High-quality fingerprint image FBI-PIV & Mobile ID FAP20 certified

●MIAXIS, ISO 19794-2&ANSI 378 Template Options

●Standard USB interface, plug&play device

●IP67 rated dust and water protection design

●Secure processor with hardware RSA keystore, Signing, RSA-2048, AES-256, SHA-256, TRNG(optional)

optical fingerprint reader SPECIFICATION:

Specification Detail

Sensor type Optical

Resolution 500dpi

Active platen area 15.24mm x 20.32mm

FAP (fingerprint acquisition profile) FAP20

Maximum Acquisition time (Placement to Template) <3s

Grey scale 8 bit (256 levels )

Live finger detection Yes

Platen Ingress Protection IP67 (sensor of surface)

ESD immunity +/-8kV contact discharge;+/-15kV air discharge

Supply voltage DC 5V±5%

Communication interface USB2.0

Operating Temperature -10°C to +45°C

Storage Temperature -20°C to +50°C

Operating humidity 20%RH～90%RH

Product size 60*40*21.9mm (L*W*H)

Weight 80g

Operating system environment Windows XP/Windows 7/ Windows 10 Android 4.0/5.0/6.0

The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm.

Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
