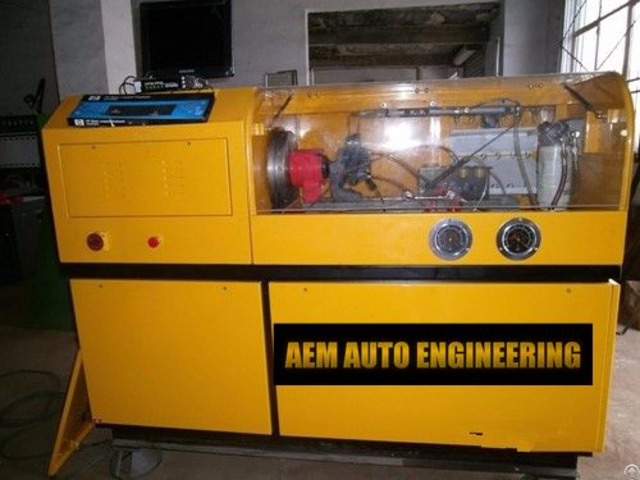

High Pressure Common Rail Pump Test Bench - China

Characteristics:

1 - Real-time control by industrial computer with windows system, touch screen operating system (or mouse).

2 - Fuel mass is measured by sensor and displayed on 19” LENOVO display.

3 - Adopts BOSCH high-pressure common rail injection pump to generate 0~1600 bar pressure.

4 - Real-time measure and control of rail pressure, with overpressure protection function.

5 - The pulse width and frequency of injector’s driving signal are adjustable.

6 - Injection time(s) of injector can be set at will.

7 - The date of more than 700 kinds BOSCH and more than 10 kinds DENSO are searchable and savable.

8 - Short-circuit protection.

9 - Accurate measurement, easy operation, low noise and energy-efficient.

10 - The fuel temperature control system adopts 2P presser force refrigeration Test function:

1 - Detection on sealing performance of common rail fuel injector.

2 - Detection on magnetic valve performance of common rail fuel injector.

3 - Observation for atomization of common rail fuel injector.

4 - Detection of uniformity of fuel quantity of common rail fuel injector.

5 - Test on starting quantity of fuel of high-pressure common rail injector.

6 - Test on full-load quantity of fuel of common rail injector.

7 - Test on idling quantity of fuel of common rail injector.

8 - Test on pre-injection of high-pressure common rail injector.

9 - Medium speed testing of common rail oil injector

10 - Test on user-defined quantity of fuel of Test on pre-injection of high-pressure common rail injector.

11 - Testing of Piezoelectric ceramic oil injector

12 - Detection on sealing performance of common rail pipe

13 - Inspection on safety valve performance of common rail pipe 14 - Inspection on pressure sensor performance of common rail pipe

15 - Detection on sealing performance of common rail pump

16 - Detection on common rail pressure of common rail pump

17 - Detection on fuel supply of common rail pump

18 - Flow rate testing of common rail oil injector

19 - Electrical HPO common rail pump testing

20 - It can test pump nozzle and unit pump.

21 - Test the CAT medium-pressure common rail (optional) Technical parameter:

1 - Main motor power: 11KW, 15KW, 2 - Range of speed of test bench: 0～4000RPM

3 - Test bench steering: Forward/reverse

4 - Testing frequency of common rail fuel injector: 0～100HZ

5 - Pulse width: 0.01～30ms 6 - Pressure range: 0～200Mpa 7 - Fuel supply pressure: 0～1.6Mpa 8 - Fuel suction pressure: -0.1～0Mpa
