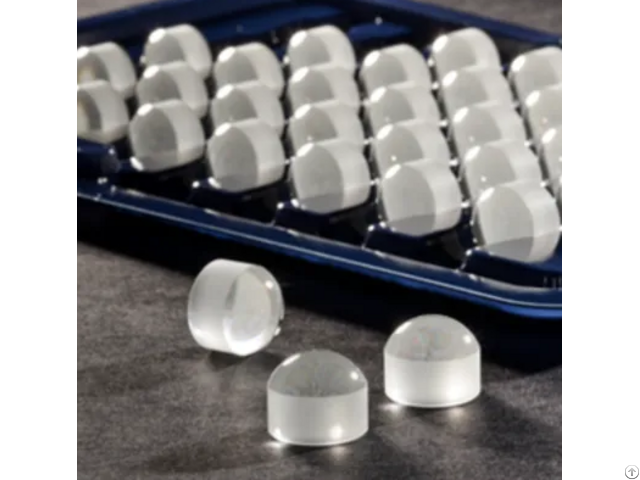

Ball Lenses - China

Ball lenses are transparent spherical ball, which has small diameters, sometimes with a few millimeters or even less than a millimeter.

It has characteristics of good surface quality, good light reflection, directional reflection, high impact strength, and light weight, etc., which are applied in various areas, such as chemical, aerospace, transportation, light industry, medical, etc.

The Application of Ball Lens

Ball lenses are great optical components for improving signal coupling between fibers, emitters, and detectors.

They are also used in endoscopy, bar code scanning, ball pre-forms for aspheric lenses, and sensor applications.

Ball lenses are manufactured from a single substrate of glass and can focus or collimate light, depenging upon the geometry of the input source.

Half-ball lenses are also common and can be interchanged with full ball lenses if the physical constraints of an application require a more compact design.

Spherical lenses are the most used lenses in optical systems design, JT produces high precision spherical lenses in plano convex, double convex, and plano concave, double concave, meniscus, achromatic doublets and triplets, develop and manufacture high-end optics from 0.5 mm to 600 mm in diameter, which use in many different fields of application, from laser material processing to biotechnology, medical technology, defense and security and the semiconductor market, meeting the most stringent requirements.

Company Contact:

• Posted By: Chang Chun Jiu Tian Optoelectric Co.,Ltd.

• Phone: +86 431 85660988

• Address: 4655th FANRONG ROAD,HIGH-TECH AREA, CHANGCHUN , JILIN , China

• Email:

• Website: https://www.jtoptic.com/

• Business Description: Micro Lenses

  For nearly 20 years, JT has been committed to micro lenses and micro prisms processing to meet the rapidly increasing demands of precise visualization.

  We can reach the dimension of micro lenses as small as 0.5mm, micro prism is less than 0.3mm after continuous technical exploration and improvement, which are applied to the applications, such as life science, industrial endoscopes, optical fiber communication, etc.

  Such micro optics play a key role in the miniaturization of optical systems.

  The micro lenses processing requires special capabilities and unique skills, we can reach the dimension of micro lenses as small as 0.5mm, these micro lenses also with short focal length, the short focal length and micro size make it used in lightweight and compact optical systems, such as medical, life sciences, industrial instruments.

  Parameters Ranges

  Material: Optical Glasses, Fused Silica, Infrared Material, etc.

  Dimension Range: 0.5~5.0mm

  Dimensio n Tolerance: +/-0.01 mm

  PV : 1/10 Lambda

  Surface Quality: 10-5

  Centration: ≤30"

  Coating: As customer's request

  The applications of micro lenses

  Micro lenses are key components for manufacturing large-scale optoelectronic systems, they have the advantages of small size, light weight, and low cost, they can also achieve new functions such as miniaturization, array, integration, imaging, and wavefront conversion that ordinary optical components cannot achieve.

  JT's micro lenses are mainly used in the field of medical equipment and life sciences, such as endoscopes or fiber bundle endoscopes and microscopic, biochip detection and analysis, retinal imaging, bioimaging and non invasive surgical treatment, as well as industrial, such as fiber optic coupling communication, laser beauty, laser processing, detection, etc.

  JT Micro Optics Advantages

  ● Custom lenses as small as 0.5 mm, prisms less than 0.3mm

  ● Proprietary technology for prototype to volume production with high-precision manufacturing

  ● Competitive price and fast delivery

  ● Trained and qualified engineers and staff are ready to help you
