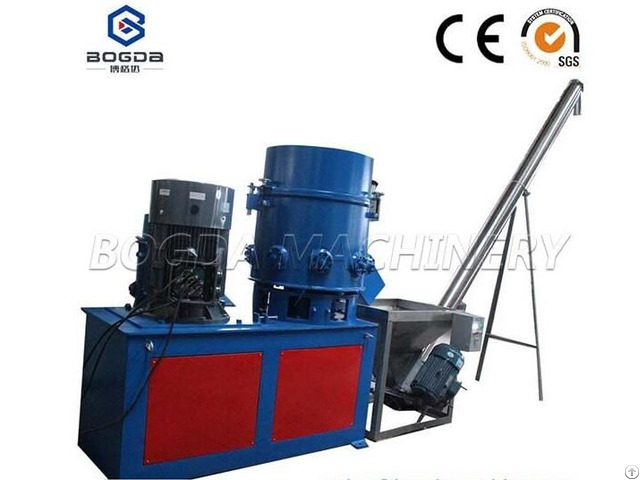

Recycling Used Plastic PP PE Film Agglomerator Densifier/Impact Machine

Application: PP PE film, fiber, etc

Screw Design: 6+2, Fixed and rotational blades

Approximate capacity: 100-800kg/h

Warranty: 12 months

Agglomerator machine using friction heat principle, make thermoplastic films direct crushing and granulation.

The Plastic agglomerator is used for granulating waste thermoplastic thin films with wall thickness less than 2 mm.

such as, high and low density polyethylene, polypropylene(PP) and polystyrene(PS), usually, the customer usually use it for the recycled film material, after crushing washing drying, the recycled PP/PE film scrap still contains 5-20% mositure, which will cause big problem for the next procedure of extruding, at the same time, the recycled film scrap takes relatively large space, so it's better that we can have a machine which can reduce the size of recycled scrap and evaporate the mositure, that's why the agglomerator comes.

Working principle for agglomerator machine:

Putting waste products into agglomerator pot body and quickly cutting by the high speed rotating and fixed blade shear.

The material turning up and down by paddle and from all around to move towards to the center of the pot body.

The friction of material and pot wall and blades produce much friction heat under the high speed, making the materials temperature rises to the half-plastic condition and connects to small lump.

Before the materials will block, put preparation quantitative water spraying to material.

The cold water touch the hot materials will gasify and take out the surface heat soon, making the surface of the materials cool quickly and avoid blocking, then after crushing effect between rotary blade and fixed blade to cut into particles(irregular size materials).

During the crushing, Also may join the appropriate color pigments according to needs.

Technical parameter

Model Volume(L) Effective Motor Mainshaft Capacity Heating Discharge Volume(L) Power(KW) Speed(rpm) (kg/h) Method Method

ZL-100 100 75 30 800 80-100 By self friction Manually or Pneumatic

ZL-200 200 150 45 800 150-200 ZL-300 300 225 75 800 250-300 ZL-500 500 375 90 750 450-500 ZL-800 800 600 132 750 750-800

Company Contact:

• Posted By: Bogda Machinery Technology Co.,Ltd

• Phone: 86-513-88837932

• Address: NO.161, Huanghai Road, Haian Town, Nantong City, Jiangsu Province, China, nantong , jiangsu , China

• Email:

• Website: https://www.bogdaplast.com/

• Business Description: Bogda Machinery Group is a professional manufacturer of plastic extrusion and recycling machinery with an in-house research and development center where all of our machines are designed, tested, and constantly evolving.

  With more than 150 employees and two decades of experience in the plastic recycling industry, our quality-assured equipment has been exported to more than 50 countries and is being used in countless reprocessing / recycling / washing plants throughout the world.

  Our facility is located within Zhangjiagang City, China and occupies more than 40, 000 square meters.

  All high quality, high precision machinery are CE & ISO9001: 2000 certified.

  We endlessly strive to produce innovative recycling machines that are not only efficient, but durable as well.

  To accomplish this, we stress the usage of only high grade materials, spare parts, and electric motors from well known Chinese, Japanese & German manufacturers.

  Although this will tremendously increase our production costs including making our price quotations less competitive, our un-matched quality, customer service, and dedication to after sales has brought us international recognition and a customer base of companies looking for cutting-edge plastic recycling machines that continue to operate year after year.
