Brand Name: BOGDA; Floor thickness: 4-6mm; Raw material: PVC powder, Caco3, CPE, ACR, etc; Production speed: 0-6m/min; Mould width: 1320mm and 1050mm; Type: Plastic sheet extrusion line

Product Descirption

PVC plastic floor also named Rigid vinyl plank, which is new environment-friendly flooring, with zero formaldehyde, mildew, moisture, fire, pest control, simple installation.



PVC plastic floor is extruded by extruder and T-die extrusion PVC substrate, with three-roll or four-roll calender, respectively, PVC wear layer, PVC color film and PVC substrate, one-time heating paste, embossed products, The process is simple, close by heat to complete, do not need glue.

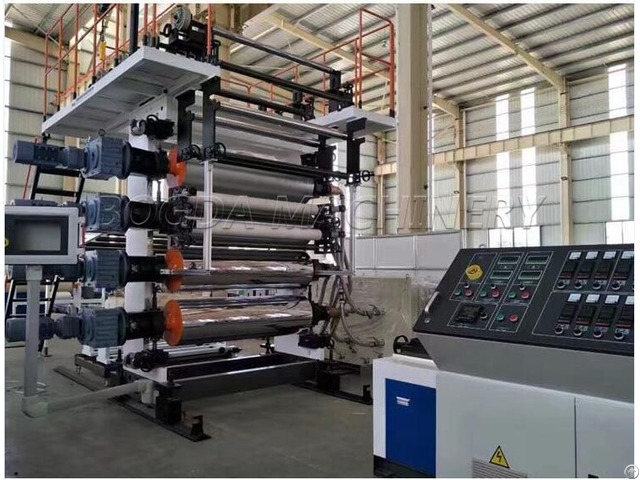

Double layer 0.5-2mm thick PVC floor production line

NO.

Machine Name Qty.

1 SJSZ92/188 Conical twin screw extruder 1 set

2 Hanger plate mold 1 set

3 Four-roll calender 1 set

4 Cooling bracket + trimming device 1 set

5 Four-site coating + correction device 1 set

6 Traction machine 1 set

7 Precision cutting plate machine 1 set

8 Feeding device 1 set

Specifications for double layer 0.5-2mm thick PVC floor production line

1 Use raw materials PVC plus accessories

2 Production line speed 0-6m / min

3 Maximum yield 600-800kg / h

4 Total installed power 200kw

5 Actual energy consumption 140kw

6 Air consumption 0.4m3 / min

7 Air pressure 0.6mpa

8 Water circulation 0.3m3 / min

9 Working temperature 0-40°C

Company Contact:

• Posted By: Bogda Machinery Technology Co.,Ltd

• Phone: 86-513-88837932

• Address: NO.161, Huanghai Road, Haian Town, Nantong City, Jiangsu Province, China, nantong , jiangsu , China

• Email:

• Website: https://www.bogdaplast.com/

• Business Description: Bogda Machinery Group is a professional manufacturer of plastic extrusion and recycling machinery with an in-house research and development center where all of our machines are designed, tested, and constantly evolving.

  With more than 150 employees and two decades of experience in the plastic recycling industry, our quality-assured equipment has been exported to more than 50 countries and is being used in countless reprocessing / recycling / washing plants throughout the world.

  Our facility is located within Zhangjiagang City, China and occupies more than 40, 000 square meters.

  All high quality, high precision machinery are CE & ISO9001: 2000 certified.

  We endlessly strive to produce innovative recycling machines that are not only efficient, but durable as well.

  To accomplish this, we stress the usage of only high grade materials, spare parts, and electric motors from well known Chinese, Japanese & German manufacturers.

  Although this will tremendously increase our production costs including making our price quotations less competitive, our un-matched quality, customer service, and dedication to after sales has brought us international recognition and a customer base of companies looking for cutting-edge plastic recycling machines that continue to operate year after year.
