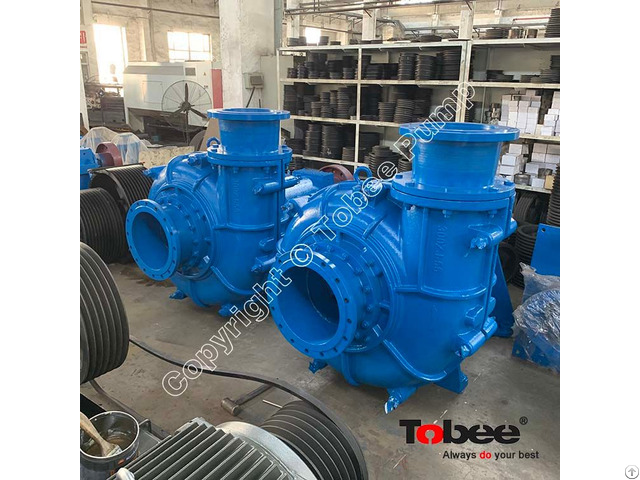

Tobee China Zj Series Heavy Duty Slurry Pump - China

Sales7(at)tobeepump.

com Tobee ZJ series horizontal pumps according to the export diameter is divided into 300mm, 250mm, 200mm, 150mm, 100mm, 80m, 65mm, 50mm, 40mm and other specifications.

ZJ series China Horizontal Slurry Pump is a new generation of centrifugal slurry pumps based on modern hydromechanics and mechanics theories, ZJ series slurry pumps are designed for heavy duty high head applications like ash removal in power plants and mining tailing, oil lubrication with water-cooling design makes the bearings always working at lower temperature, direct connected drive are always optional by trimming impeller to appropriate diameter and to get performance just in need, save the cost for variable-frequency motor.

Specially designed liners and impellers structure help pump get higher efficiency and high head.

Design Features: √ Single stage, single suction, overhang shaft, centrifugal, double casing, hard metal horizontal slurry pump design.

√ Base - A single piece base with integrated adjustment mechanism for impeller clearance within pump, bearing assembly locks into base using six or eight heavy-duty bolts.

√ Bearing assembly - all bearings assembled with highest quality tapered roller bearings in controlled environments to prevent lubricant and housing contamination, oversized shaft diameters and reduced overhang in the wetted end contribute to long life and reliability in the field

√ Impeller - hard metal impeller, pump out vanes on rear and front reduce recirculation within pump, and aid in preventing seal contamination, optional castings of straight or semi-Francis vanes offer wider hydraulic options in single sizes

√ Liners - heavy-duty hard metal liner, active engineered attachment mechanism to casing via threaded bolts as opposed to unreliable glue

√ Throatbush - adjustable via cotters to account for wear over time and increase efficiency

√ Expeller seal combined with packing seal and mechanical seal have been adopted to guarantee the slurry from leakage.

Company Contact:

• Posted By: HEBEI TOBEE PUMP CO.,LIMITED

• Phone: +8615831127175

• Address: Hi-tech Development Zone | Shijiazhuang City | Hebei Province | China, Shijiazhuang City, Hebei , China

• Email:

• Website: https://www.slurrypumpsupply.com/

• Business Description: Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc.

  Our factory is located in the High tech Development Zone, Shijiazhuang City, China.

  We specialized in Horizontal slurry pumps, Vertical slurry pumps, slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Sewage pumps, Submersible slurry pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
