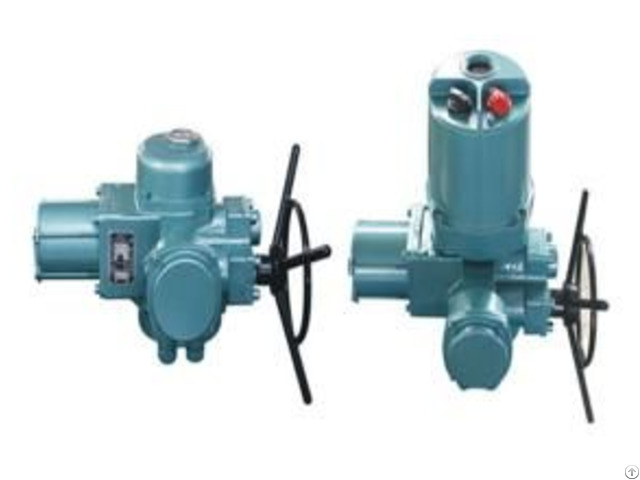

Isq Series Intelligent Electric Valve Actuator - China
price: 800.00 Dollar US$
Main technical characteristics and indicators: (1).
Input voltage range:
Three-phase: AC340V ~ 420V 50 / 60Hz (special voltage to be customized)
Single phase: AC200V ~ 240V 50 / 60Hz (special voltage to be customized)
(2).
Supporting 18-bit absolute encoders, the valve position is not lost, can guarantee high precision, zero wear, long life, strong anti-interference ability, no battery support.
(3).
The unique two-speed control mechanism allows the actuator to avoid the surge effect of the fluid during operation.
(4).
Infrared setter and knob (magnetic isolation technology) can be set to work parameters, convenient and practical, and truly free open cover.
(5).
Simple, intuitive Chinese menu, man-machine exchange interface more humane, easy to debug, and can provide English menu to facilitate export support.
(6).
Perfect 3-level password protection, different customers or operators can be separately authorized to prevent the wrong parameters lead to actuator failure occurred.
(7).
Provides 5 field programmable monostable relay feedback, providing 1 alarm single steady state relay feedback, expandable 4 bistable relay feedback.
(8).
The input / output signal channels are optically isolated (withstand 2000V surge voltage).
(9).
Position feedback 4 ~ 20mA signal Load resistance: 50Ω ~ 750Ω, accuracy: 0.5%;
(10).
Operating temperature range: -30 ℃ ~ +70 ℃.
(11).
Use humidity range ≤ 90% RH, no condensation, surrounded by strong corrosive, flammable and explosive gases or dust.
Company Contact:
- Posted By: Tianjin Bernard Actuator Co., Ltd.
- Phone: +8613821688574
- Address: No.1, 3rd road haitaihuake, Tianjin , Tianjin , China
- Email:
Published date: May 21, 2018
- Business Description: We are Chinese famous electric actuator manufacturer and exporter.
Our intelligent electric actuator is top product of the world with advanced digital integrated chip and efficient, humanized mechanical and electrical integration structure.
Infrared remote controller without having to open the cover makes function perfect, light and handy, artistic, debugging simply, operation easily, reliable and safe, adequate protection.
We can meet customer's variety of requirement.
We mainly export to Malaysia, Syria, Viet Nam, Russia, India, etc.
Our local users including: Chinese five largest power group, Sinopec Tianjin Branch, China Building Materials Group and China National Materials Group, etc.
We can supply you quality products with lower prices.
Please feel free to contact us with your AutoCAD or PDF drawings.
We are ISO9001 enterprise with CE & EAC certificate products.
