Digital Uv Flatbed Acrylic Sheet Printer With Large Print Format - China

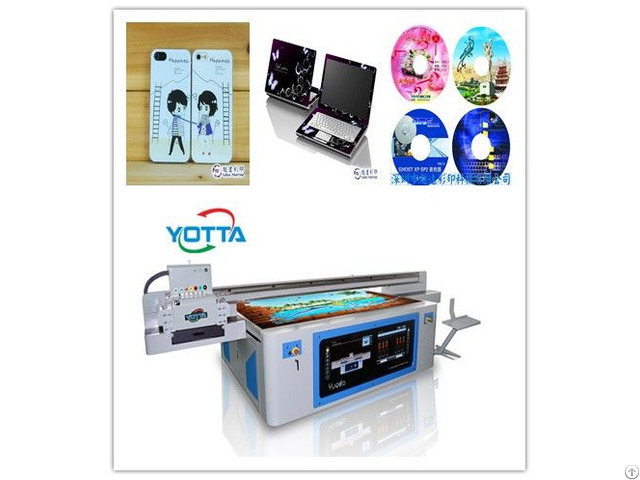

YD2512-RD UV Flatbed Inkjet Printer adopts imported original Ricoh G5 printhead, the number of printhead can be increased or decrease according to you requirement.

With the maximum print size of 2500mmx1250mm and print speed of 36㎡/h (4 PASS), it can print onto super huge flat materials which thickness within 100mm.

It is a high-speed and high - precision UV flat printer for medium and small size processing enterprises.

and meet their high precision and high speed production requirements.

Applications of YD2512-RD UV flatbed printer

Rigid materials: glass, ceramic, metal plate, wood, data plate.

acrylic panel, KT board, PVC sheet, melamine sheet, marble board, etc.

Flexible materials: paper, plastic film, leather, texitle, etc.

1 - Adopting new 3-8 grey level Ricoh G5 internal heating industrial printhead, 4-7 color optional(6 color or 6+2 double white), variable drop printing, the minimum ink droplet is 7pl and maximum is 35pl, ink droplet is more intensive, multicolor printing, the color will more brighter, the printer can clearly print 2pt typeface, not only print with high resolution, but also can print with high speed, the highest resolution is 600*2400 dpi.

G5 print head life time is very long, what is more, work performace is stable, so it is very suitable for long-time working, 24 hours runing.

If maintain good condition, the print head life time can reach about 5 years.

2 - Adopting dual-level precision screw and imported Panasonic servo synchronous motors, work stably, ensure Y axis double side screws synchronous runing, small error, stable and reliable, which is guarantee of high-speed and stable printing.

3 - Whole steel frame structure tempering treatment, which adopt dual guide rail steel frame structure, print head can be more steady, running can be more stable and faster.

4 - Taiwan HIWIN mute double guid rail, high resolution, low noise, durable, ensuring the car work steadily, decreasing shake, spraying ink will be more stable and reduce deviation.

5 - Adopting Germany IGUS towline, Italy Megadyne synchronous belt, ensuring system Can work stably in a long term.

6 - Equippment with several emergency brake switch can ensure body and equippment safety.

7 - Equipped with emergency back up power supply, when the computer powers off of suddenly, can still maintain the negative pressure system, keep the negative pressure system working properly and enter into the working state quickly when power on.

YD2512-RD printer specification

Model YD2512-RD

Printing size 2500mm×1250mm

Print head model Ricoh G5(7pl)

UVcuring systerm Standard|;086 mercury lamp for curing, 3-4 energy levels for option Optional: UV LED curing systerm

Printing color C, M, Y, K, Lc, Lm, W, V for option

Medium thickness Max100mm

Number of print head 2-8 pcs

Printing ink type Imported UV curable ink

Printing speed

High speed mode 36㎡/h

Normal working mode 27㎡/h

High precision mode 20㎡/h

Power supply Single phaseAC220V/6500W；50/60 HZ

Date interface High speed USB

RIPsoftware photoprint

Color control ICC

Weight 1300KG

Operation environment Temperature: 20℃-28℃, indoor relative humidity: 40%-60%

Dimension 4510×2500×1400(mm)

Company Contact:

• Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.

• Phone: 13925227012

• Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China

• Email:

• Website: http://www.yo-da.com

• Business Description: Yueda specializes in manufacturing UV flatbed printer for over 8 years.

  Our printing machine can print any picture on any flat materials with embossment and 3D effect.
