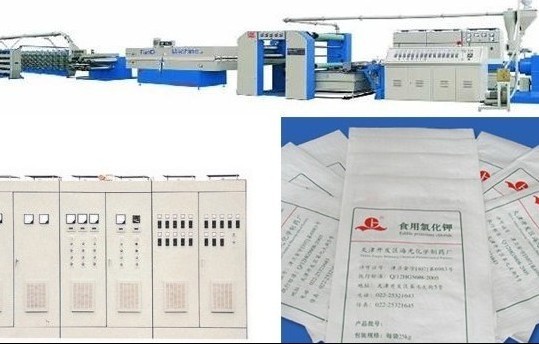

Model Sj150 1200 200 High Speed Extrusion And Stretching Machine - China

Based on adopting advanced foreign technology and combining research

outcome and experience of years hard work on producing plastic woven b

ags, Flat Film Extrusion and Stretching Machine with the brand “Tiandi”,

is designed and manufactured elaborately.

Machines of the series take

the led to apply many advanced technology widely such as micro-computer

control, frequency conversion adjustment, and automatic change filter

etc, which makes all technical indexes reach the top level in China, and

advanced level abroad all the time.

These machines have many traits such

as artistic modeling , scientific structure, high efficiency, low energy

consumption etc and are used for shaping PP, HDPE, LDPE and other kinds

of flat films.

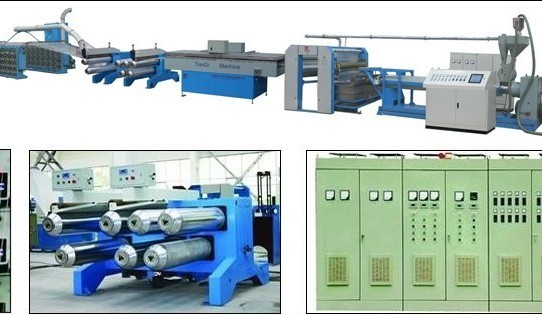

Seven-Roller for Stretching, Forming, Retracting and Water Cooling Electrical Control System

Main Technical Parameters of High-speed Flat Extrusion and Stretching Machine

Model BSJ90/1100-250

BSJ120/1500-220

BSJ150/1200-200

Suitable material

PP/HDPE

MaxExtrusion output

280kg/h

420kg/h

600kg/h

L/D Ratio of Screw

33: 1

Purging Screw Tube

Rotational Velocity of screw

20-120r/min

20-140r/min

Width of Die Lip

1100mm

1500mm

1200mm×2

Filter Form

Automatic belt filter

Stretching form

Up and down double face hot oven (Hot bowed board oven, electricity heating

Quantity of Equipped Spindles

184 spindles

256 spindles

400spindles

Max Linear Speed

250m/min

220m/min

Density Scope of Flat Film

60-220tex

Total Power

260kw

400kw

420kw

Measurement

36m*5m*3.6m

44m*5m*3.6m

(35-50)m×5m×3.6m

Total Weight

24T

34T

35T

Introductions: Standard s of Flat Film: 2 .

5mm, Thickness of Film: About0.05m
