Cnj D5 2 Two Dies Punching Machine - China

Product introduction:

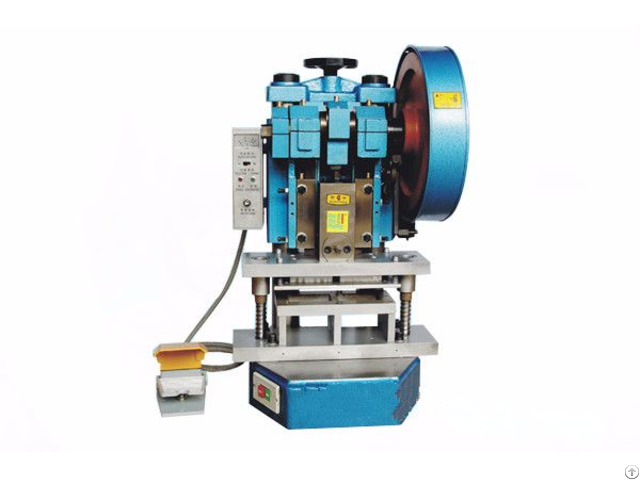

CNJ-D5-2 two dies punching machine, which is a punched equipment for punching PVC cards, during the card making procedure, it can punch the laminated material into a card figure.

The driving manner is that the electromotor drives the fly wheel, through the function of clutch to punch the cards.

Because the punching speed is very fast and the power is strongly, the edge of the cards is cut smoothly.

The machine operates easily, high efficiency, which is designed for the pre-special consumer.

Technical specification

Type CNJ-D5-2 Punching Machine

Punching size 85.7×54mm

Inlet dimension 210×297mm

Punching thickness 0.1-1.5mm

Cutter Mold 2pcs

Efficiency 2400sheets/h

Power AC 220/110V 50/60Hz Machine size 530×420×620mm

Net weight 180KG

Packing meas 580×460×720mm (wooden box)

Gross weight 197KG
