Pear Shaped Acrylic Pattern Sheet - China

Description：

Acrylic Pear Shaped Prismatic sheet, or Acrylic Pear

Shaped patterned sheet, This kind of textured acrylic

sheet, has a raised prismatic pattern of male cones

running parallel and perpendicular to the lens and

width of sheet, the overall pattern provides good lamp

cut- off minimize lamp images and provide very low

brightness at angels close to the horizontal.

图

Specification：

Dimension( L×W×T)

Length( L) Width( W) Thickness( T)

2500mm 1250mm 2~6mm

Pear diameter( mm) 0.4mm( T=2mm)

The other size and thickness can be made to order.

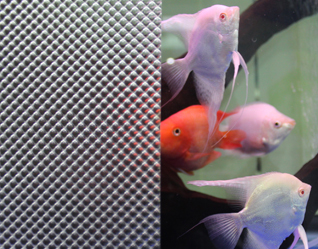

Pear shaped Prismatic pattern detail: 图

Character

Item Test Method Unit Value

Light Transmission ASTM D1003 - 90%

Water Absorption ASTM D570- 98 % 0.01

Vicat Softening Temp ASTM D1525- 09 ℃ 104.0

Heat Distortion Temp ASTM D648- 07 ℃ 88.4

Coefficient of Thermal Expansion ASTMD696 In/ IN- F

0.000033

Rockwell hardness ASTM D785- 08 - M- 95

Flammability UL 94- 1996 - HB

Company Contact:

• Posted By: J.K OPTICAL PLASTIC Co., LTD.

• Phone: +8676089866466

• Address: LED Trading Center, Shuncheng Industry Zone,Guzhen, Zhongshan City, Guangdong Province, China

• Email:

• Website: https://www.chinaacrylicsheet.com/

• Business Description: J.

  K optical Plastic Co., Ltd is a group with two division factory which specialize in optical plastic sheet manufacturing, has been serving the lighting industry for almost 10 years, products included: UGR diffuser(ugr<19), Acrylic textured/pattern sheet, Acrylic diffuser, thermoforming plastic sheet and 3D diffuser , its widely used in Fluorescent light fixtures, Led panel light, Ceiling light and so on.

  So far we have introduced five advanced Co-extrusion equipments, and raw material we only use"Mitsubishi" from Japan and "LG" from Korea, The key manufacturing procedures of extrusion, calendaring, cooling, and masking film are all completely in dust-free condition.

  The production lines are fully automatic and controlled by computer, and now is one of the leading companies in the china acrylic industry, which monthly process capability reach to 800 tons, and share a large market in china.

  As a commitment to our customers, J.

  K continues to re-invest heavily in research and development along with the very latest technology in our plants, for a continued stream of new products, quality and cost control.

  This enables J.

  K to assist our customers in meeting the everyday challenges in an ever changing global marketplace.

  Vision: Become a world-class manufacturer of acrylic sheets

  Mission: Committed to providing customers with high quality products and professional solutions

  Strategic objective: Strive to be the most reliable strategic partner in plastic industry.
