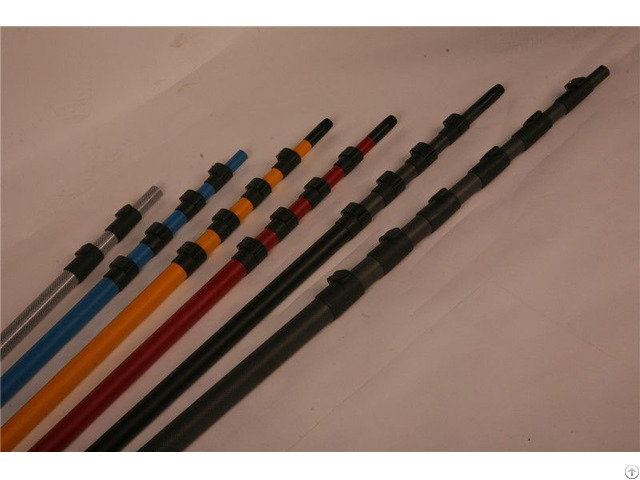

Transverse Flip Lock Carbon Fiber Telescope Tubes For Long High Place - China
price: 150.00 Dollar US$
Multi-function Carbon Fiber Telescoping Pole For Long Reach / High Reach Purpose / rescure poles Quick Detail: High Strength, low weight
high stiffness
wear resistance
rigid
UV stable
strick OD / ID control
Many different lengths from 1ft to 55ft are available as requested Description: These carbon fiber telescoping poles slide effortlessly and could be locked at any length, easy to use, easy to carry and easy to stock.
They can be extended to maximum length in few minutes by pulling out and locking each telescoping section.
This 100% carbon fiber telescopic pole is rigid and crush resistant, light-weight and portable, at up to a fifth of the weight of steel and many times stronger, carbon fiber telescoping poles are ideally suited to replace metal tubes/poles.
Carbon fiber tubes can be tailored much more to a given application with regard to directional stiffness and strength.
These poles can be used as window cleaning pole, solar panel cleaning pole, pressure washing pole, trolling fishing outriggers, GPS prism pole, boom pole, antenna mast, painting pole, camera pole, pole saw handle, kayak paddle handle and many others.
*Warning: Carbon Fiber is an excellent electrical conductor.
Specifications: Segments: from 1 section to 8 sections
Surface finish: highly grip matt surface, other options are available
Fiber Type: 100% Carbon Fiber
Fiber Orientation: uni-directional
Matrix Type: Epoxy
Inner Diameter (ID) Tolerance: +/- 0.05mm
Outer Diameter (OD) Tolerance: +/- 0.05mm
all the metal fitting are available to be custom made
Following is some standard sizes in our factory.
FG=
Fiberglass Extended Length Closed Length Sections Handle Diameter Approx
Pole Weight
FG1503 15ft 4.70m 1.70m 3 29.5mm 1250g
FG1804 18ft 5.50m 1.54m 4 33mm 1400g
FG2004 20ft 6.14m 1.70m 4 33mm 1600g
FG2205 22ft 6.73m 1.54m 5 36mm 2000g
FG2505 25ft 7.53m 1.70m 5 36mm 2200g
HB=Hybrid 50/50
(carbon-fiberglass mixed) Extended Length Closed Length Sections Handle Diameter Approx
Pole Weight
HB1503 15ft 4.70m 1.70m 3 29.5mm 1000g
HB1804 18ft 5.50m 1.54m 4 33mm 1200g
HB2004 20ft 6.14m 1.70m 4 33mm 1350g
HB2205 22ft 6.73m 1.54m 5 36mm 1550g
HB2505 25ft 7.53m 1.70m 5 36mm 1900g
HB3006 30ft 9.17m 1.75m 6 39mm 2100g
HB3507 35ft 10.52m 1.75m 7 43mm 2500g
CF=
Carbon Fiber Extended Length Closed Length Sections Handle Diameter Approx
Pole Weight
CF1503 15ft 4.70m 1.70m 3 29.5mm 900g
CF1804 18ft 5.50m 1.54m 4 33mm 1150g
CF2004 20ft 6.14m 1.70m 4 33mm 1300g
CF2205 22ft 6.73m 1.54m 5 36mm 1450g
CF2505 25ft 7.53m 1.70m 5 36mm 1650g
CF3006 30ft 9.17m 1.75m 6 39mm 1800g
CF3507 35ft 10.52m 1.75m 7 43mm 2200g
CF4007 40ft 12.27m 2.00m 7 43mm 2600g
CF4508 45ft 13.83m 2.00m 8 46mm 3200g
HM=
High Modulus Carbon Fiber Extended Length Closed Length Sections Handle Diameter Approx
Pole Weight
HME4007 40ft 12.27m 2.00m 7 43mm 2500g
HM4508 45ft 13.83m 2.00m 8 46mm 3150g
EXT1002 10ft 2.90m 1.54m 2 43mm 800g
HME4507 45ft 13.67m 2.20m 7 43mm 3100g Carbon fiber tube Applications: Water fed pole for window cleaning
gutter cleaning pole
solar cleaning pole
camera pole, Camera tripods, monopods, Telescoping Camera pole Jib Arm
Telescopic prism poles/GPS pole
Riggers includes center rigger poles and outrigger poles
Additional handle to reach high
Many others Competitive Advantage: Engineer team with 15 years carbon fiber industry experience
Factory with 12 years history
High quality carbon fiber fabric from Japan/US/Korea
Strict in-house quality checking, the third party quality checking also available if requested
All the processes are strictly going according ISO 9001
Fast delivery, short lead time
All carbon fiber tubes with 1 year warranty
Transvers Flip Lock Carbon Fiber Telescope Tubes For Long / High Place
Telescope Tubes For Long / High Place
Company Contact:
- Posted By: Lanbao Sci & Tech Development Limited
- Phone: 18615165491
- Address: 201-2 Shichang Avenue, Weihai , Shandong , China
- Email:
Published date: November 28, 2018
- Business Description: Here at Lanbao Sci & Tech Development Limited, it's all about carbon fiber technologies.
We are specialized in carbon fiber tubes related products like telescopic carbon tubes from big size to small, the mature products are such as carbon fiber water fed pole for window cleaning and carbon fiber trekking poles with our own patented owned locking mechanism.
And our carbon fiber tubes are also used in other products as flag pole, fishing pole, sport fishing outriggers, tripod etc.
