Right Angle Prism

Prisms

Optical Components

Custom Right Angle Prism, BK7 Glass Right Angle Prism, UV Fused Silica Right Angle Prism Manufacturer China

PARAMETER:

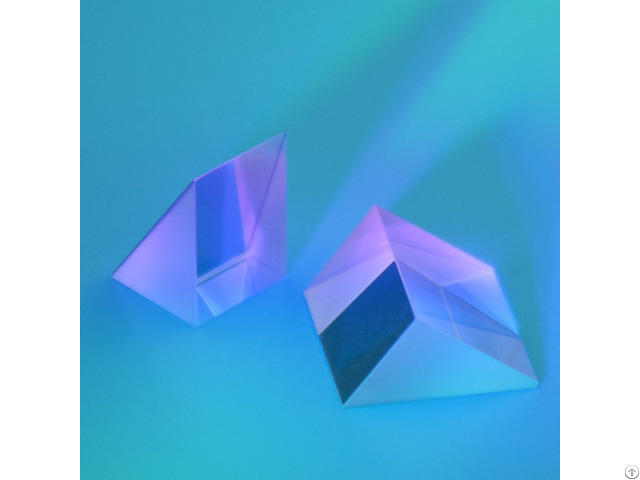

Right angle prisms are extremely versatile optical components, commonly used as individual prisms and components of optical assemblies.

A beam of light entering the leg of a right angle prism will deviate by a nominal value of 90°, while precise rotation of the prism controls beam alignment.

When light enters the hypotenuse of the prism, it is commonly called a porro prism.

In this configuration, a light beam will undergo 180° deviation that is invariant in the azimuthal axis, while precise adjustment of the prism controls beam elevation.

Specification

Material BK7 glass / UV Fused silica

Dimension 3mm~200mm

Dimension tolerance ±0.1mm~±0.05mm

Surface quality 60/40, 40/20, 20/10

Surface flatness λ/20 – λ/4

Angle tolerance <30arc sec.

~5arc min

Bevel <0.25mm×45°

Coating As per customized request Size List

TYPE No.

Dimension

RAP-5 5.0mm×5.0mm

RAP-10 10.0mm×10.0mm

RAP-12.5 12.5mm×12.5mm

RAP-15 15.0mm×15.0mm

RAP-20 20.0mm×20.0mm

RAP-25 25.0mm×25.0mm

RAP-50 50.0mm×50.0mm Other customized sizes can be met.
