Optical Components Cylinder Lenses - China

Cylinder

Cylindrical lens

Optical Components

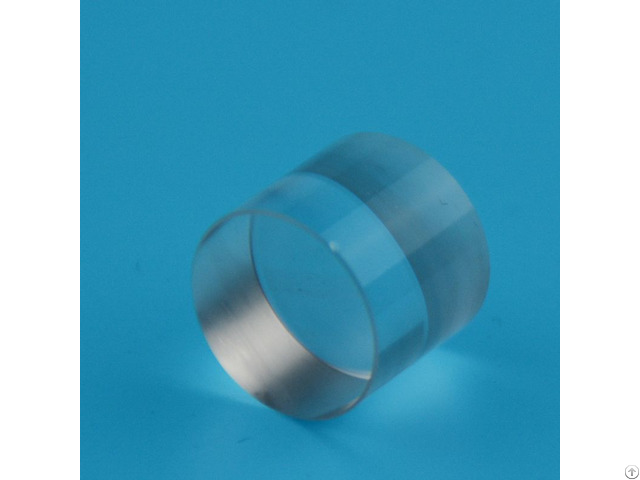

Optical Components Cylinder Lenses

PARAMETER:

Cylinder Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image.

Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image.

Cylinder Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs.

Specification Material Optical glass/ Fused silica/ sapphire etc.

Dimension 2mm~100mm

Dimension tolerance ±0.05mm~±0.1mm

Length 2mm~200mm

Surface quality 60/40, 40/20, 20/10

Surface accuracy 532nm

Clear Aperture >85% dig diameter

Centration <3arc min~ 30arc sec

Coating As per customer’s request

Company Contact:

• Posted By: ChangChun BRD Optical co., Ltd

• Phone: 8643181884163

• Address: No.399 Bo Cai Road, High-Tech Industrial Development Area, Changchun, Jilin, China 130012, Changchun , Jilin , China

• Email:

• Website: https://www.ecoptik.net

• Business Description: Changchun BRD Optical Co., Ltd was founded in 2000, and is located in the city of Changchun-the optic base of China with a beautiful view and profound optical culture.

  We have state-of-the-art, modern technology machines for manufacturing and inspecting all kinds of precision optics.

  Our company occupies an area of 1, 500 square meters, supported by 82 workers, including three technical engineers and two dedicated optical engineers.

  In the aspect of technology, we benefit from the backbone of Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences and Changchun University of Science and Technology.

  We also usually make technical exchange with each other.

  Referring to the manufacture equipment and checking equipment of products, most of them are adopted from abroad including coating machine, sphericity interferometer, optical spherometer and others.

  It can detect the optical components exactly and increase the production levels.

  We also comply with a standard of DIN, MIL, ISO surface quality standards in the aspect of production layout and production design.

  For many years, we were focusing on manufacturing and selling precision optics with high quality.

  We mainly deal with optical lenses, prisms, windows, filters, cylindrical lens, aspherical lens, mirrors, quartz glass, ZnSe, CaF2 and others.

  Our Products:

  - plano convex cylindrical lens optical glass

  - plano concave cylindrical lens optical components

  - meniscus cylindrical lens

  - cemented cylindrical lens

  - optical components cylinder lenses
