K9 Quartz Convex Biconcave Lens Manufacturer - China

Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements.

The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials.

And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

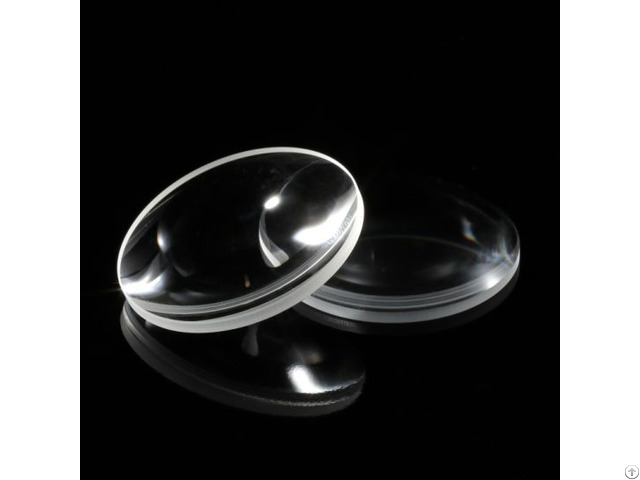

A biconvex lens focuses light into a point with a positive focal length and consists of two convex surfaces with equal radii.

It is commonly used in imaging relay system and object imaging under limited conjugate distance.

The characteristic is that the larger the conjugate ratio, the greater the aberration.

A biconcave lens will radiate light with a negative focal length.

It is composed of two concave surfaces with equal curvature.

It is often used for beam expansion, projection and focal length expansion of the lens.

Borisun optics provides biconvex lenses without coating and with antireflection coating.

Antireflective film options include UV, VIS, NIR, and SWIR.

It is suitable for fused germanium or silicon violet, while it is suitable for fused germanium or silicon violet.

Technical parameters:

Material: optical glass, H-K9L (N-BK7), quartz

Radius of curvature: ± 1mm - ± 50000mm ± 1%

Outer circle: 3mm-500mm ± 0.1mm

Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)

Center deviation: 3�?�(we can process to 30 �?�with high precision)

Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)

Surface quality: 60/40 (we can process to 10-5 with high precision)

Effective caliber: �?�90%

Coating: according to the customer requirements In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on.

The price is preferential and the quality is excellent, which can meet your demand for a small order.

If you are interested it, welcome to inquiry us or search "Hanzhong Borisun Optics Co., Ltd "to know about more details.
