Type For Float Valve F And G With Subs - China
price: 20.00 Dollar US$
API Downhole Drill Pipe Float Valve & Float Valve Sub Product Description Introduction: It also prevents backflow of cuttings from plugging the drill bit jets while making connections.
The float valve sub is a bit sub equipped with a float valve.
Based on the connections appointed by used, supplier put a float valve into the inner bore of the sub.
Model "F" Type Drill Pipe Float Valve
Material: WCB or 1045
Process: Investment Casting
Pattern: Aluminum
Surface Treatment: Xylan Coating or Nickel Plated
Coating Depth: 0.25mm~0.3mm
Certificate: ISO9001: 2008
Package: Plywood cases or steel crates
Payment Term: T/T We make a complete line of Float Valves and Repair Kits to accommodate a wide range of drilling situations and operating conditions.

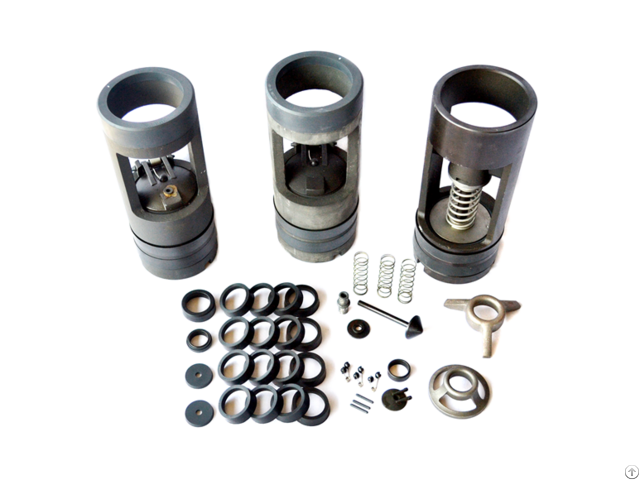

Spare Parts for Model G Type Drill Pipe Float Valve include: Small Bumper, Spring, Pin, Large Bumper, Shock Absorber, Seal Retainer, Flapper Valve, Seal, Side Seal, Cage Spare Parts for Model F Type Drill Pipe Float Valve include: Valve Seal Disc, Plunger, Side Seal, Valve Seal, Guide, Spring, Cage.
Technical parameter Type OD
(mm/inch) ID
(mm/inch) Length
(mm/inch) Thread API Float valve size FVJ121D 121(4-3/4) 50.8(2) 915(36) 3-1/2″REG B× NC38B 2F-3R FVJ165D 165(6-1/2) 71.4(2-13/16) 915(36) 4-1/2″REG B× NC50B 4R FVJ203D 203.2(8) 71.4(2-13/16) 915(36) 6-5/8″REG B× 6-5/8″REGB 5F-6R FVJ229D 228.6(9) 76.2(3) 915(36) 7-5/8″REG B×7-5/8″REGB 5F-6R
Company Contact:
- Posted By: Dongying Lake Petroleum Technology Co., Ltd
- Phone: +865467080021
- Address: Huanghe Road, Dongying , Shandong , China
- Email:
- Website: https://www.lakepetro.com
Published date: June 6, 2020
- Business Description: We are a supplier from China for Oilfield equipment and tools: BOP, Mud pump, Valves, pipes, Handling tools, Downhole tools, Solid control, Wellhead control, flanges, fittings and spare parts.
