Swivel Joint In Pipe Fitting - China

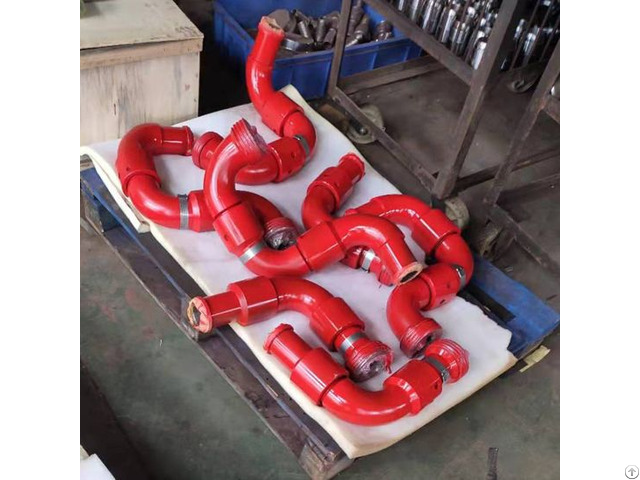

Swivel joint

Swivel joint is used for coupling of different pipes high pressure pipeline during a washout of sandy slugs, acid processing of a well, overhaul of pipeline.

Nominal pressure: 70MPa; Test Pressure: 76 MPa; Mass: 23 kg.

swivel elbow sizes range from 2 "to 4" with a rated pressure of 15000 psi.

All SPM swivel elbows are

Uniform, can ensure the flow rate is stable and can effectively extend the service life.

The female fairway adopts the best material layout, steel balls

The bearing is connected with each component to make the SPM elbow more stable when rotating.

3 "1502 and 4" 1002 swivel elbow during machining, All must pass the standard gauge to ensure they pass the 2.5 "and 3.5" fracturing balls respectively.

SPM rotary elbow has many styles and is widely used.

Under various installation forms, it can ensure excellent product performance.

No

Elbows of the same model are equipped with different numbers of rotary unions.

There are differences in the number of joints, so the elbow can provide rotation from

The degree of freedom is also different.

Note: weir standard elbows cannot be used for continuous rotation applications.

For more information, please contact weir engineering.

If the number of rotating elbows is not enough or the configuration form is not correct, it will bring load to the whole manifold system which is difficult to bear

Causes premature seal failure or accelerated product wear.

The rotating elbow is not suitable for side load, it is forbidden to lead in the bearing fairway

Load operation of bending moment.

In order to prevent the above situation, it is recommended to use three rotary unions so that the rotary elbow can meet the requirements of the pipe

Freedom requirements of the road in all planes.

This can be achieved by using one type 10 or two type 50 swivel joints.

It is recommended to follow the routine maintenance procedures, replace the packing and seals, and lubricate them regularly.
