Petroleum Oil Product Saybolt Colorimeter - China

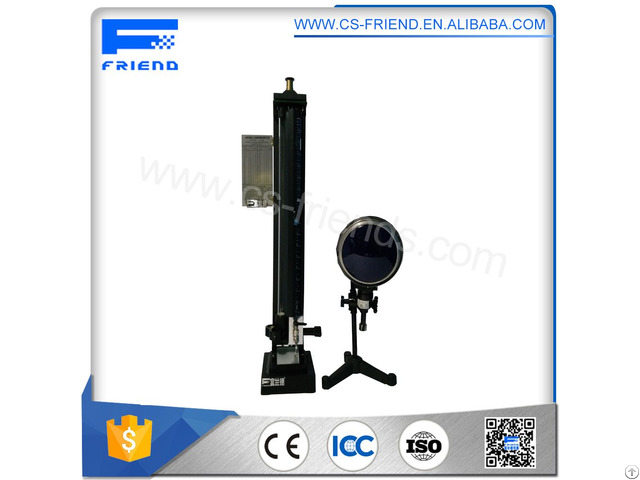

FDR-2401 Saybolt colorimeter

Scope

Saybolt colorimeter can measure refined petroleum products, including a set of matching samples and equipped with optical indicator of standard tube.

In the same light source sample with standard color comparison.

Reduce the liquid column height of the sample until the sample was significantly lighter than the standard palette of colors, and use the chart on the instrument to convert Saybolt color of height.

Three standard color glass on - position color standard pipe may conveniently be replaced swatches.

After paraffin Saybolt colorimeter is equipped with a heater for the determination of paraffin, during the test, it is not flowing like melted wax.

Sample tube has a 200W chrome steel strip heater, with a hinged lid to maintain the heat evenly.

Aluminum heater with a 50W fuel element is kept molten wax-like state.

Affiliated variable transformer can be used to regulate the temperature of the sample.

Optical observation instrument and shelves are fully insulated with a heater.

Test tube assembly with a heat-resistant fiber handle.

Features

1, in line with GB / T3555, ASTM D156; DIN 51411; FTM 791-101; NF M 07-003 and related specifications

2, three color standard pipe (Three-position color standard turret)

3, This instrument can test non liquid wax and liquid petroleum products

4 - This instrument can measure Saybolt Color of refined petroleum products.

Includes a set of matched samples with an optical observer and standard tube assemblies.

5, the key components imported accessories.

6, compact structure, well-made.

7, easy operation and flexible.

8, test data is accurate, fast, at a glance.

Technical Parameters

1, paraffin Saybolt colorimeter 220-240V, 50/60Hz

2, the entire thickness of standard color (3)

3, semi-thick standard color (1)

4 - Making the Saybolt color number and column height table sample (1)

5, the day light: 110-240V

6, frosted bulb: 60W, 220V

7, variable transformer: 220-240V
