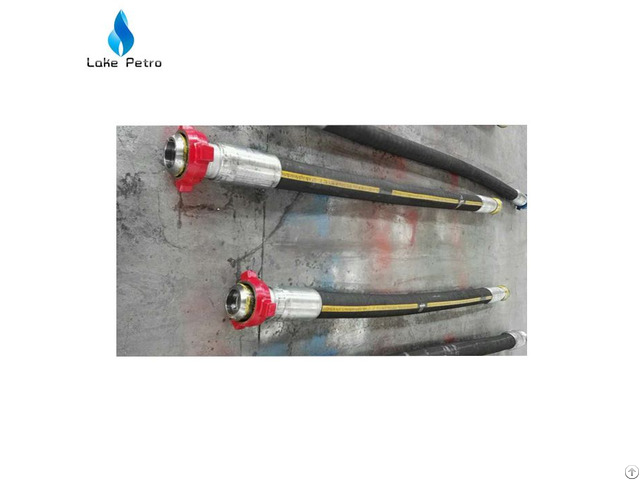

High Pressure Flexible Hose With Fig 400 600 1502 Hammer Unions Or Npt And Flanges - China
price: 200.00 Dollar US$
Spiral Hydraulic hose Rotary Oil Drilling Hose Vibrator Hose high pressure steel wire reinforced coolant radiator rubber hose technical parameters: DN(mm) Hose OD(mm) W.
P(PSI) B.
P(PSI) Weight(Kg/m) Length(m) Minimum Bend Radius
6 13.4 3270 12840 0.21 50/100 102
8 15.0 3120 12280 0.24 50/100 114
10 17.4 2610 10280 0.33 50/100 127
13 20.6 2320 9180 0.41 50/100 178
16 23.7 1890 7420 0.45 50/100 203
19 27.7 1530 6000 0.58 50/100 241
25 35.6 1280 5020 0.88 50 305
32 43.5 920 3600 1.23 20/40 419
38 50.6 730 2860 1.51 20/40 508
51 64 580 2280 1.97 20/40 635
Company Contact:
- Posted By: Dongying Lake Petroleum Technology Co., Ltd
- Phone: +865467080021
- Address: Huanghe Road, Dongying , Shandong , China
- Email:
- Website: https://www.lakepetro.com
Published date: December 21, 2019
- Business Description: We are a supplier from China for Oilfield equipment and tools: BOP, Mud pump, Valves, pipes, Handling tools, Downhole tools, Solid control, Wellhead control, flanges, fittings and spare parts.
