Ceramic Liners For Mud Pumps - China

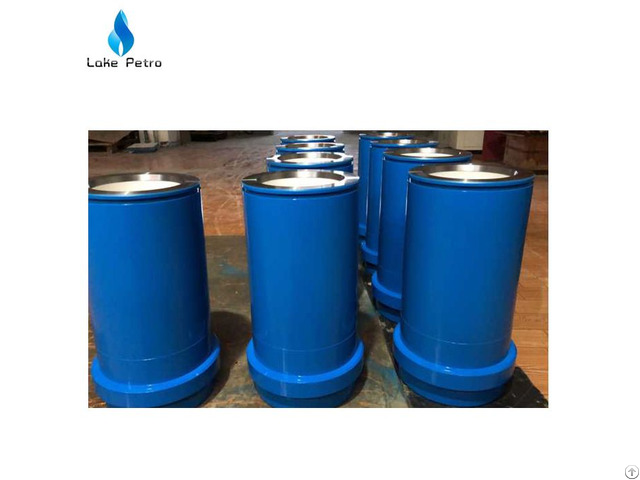

we could supply all spec premium liners and ceramic liners, API 7 EMSCO FB 1300/1600 MUD PUMP Zirconia liner used in various brands of mud pumps, produced under API 7 - 1)Our API 7 mud pump liner for emsco are made of a forged steel outer shell and a high chromium iron inner sleeve.

The out shell is centrifugally forged with high quality carbon steel, with Tensile Strength exceed 610Mpa, Yield Strength exceed 450 Mpa, Elongation exceed 17%, Hardness HB -180-200; The inner sleeve is centrifugally forged with high chrome iron alloy, with Hardness over HRC62 after heat treatment.

Each API 7 mud pump liner for emsco is machined to close tolerances to assure ease of installation and long liner life with the inside diameter of these premium liners honed to a mirror-like finish for smooth even wear during the life of the liner.

It could serve more than 800 hours.

2)Our API 7 EMSCO FB 1300/1600 MUD PUMP Zirconia liner are made of a forged steel outer shell and a ceramic inner sleeve.

We can supply Zirconia(ZrO3) sleeves as well as Alumina(Al2O3) sleeves.

The ceramic liners are mainly used for well drilling and geological explorations especially widely used in harsh oil mining environment, offshore well&gas exploration etc.

It serves a 5 to 10 times longer life than metal products, and will cut down the mining cost of more than 50%.

We could offer the normal export package, and also will customize the package according to customer’s requirement so as to meet customer ideal need.
