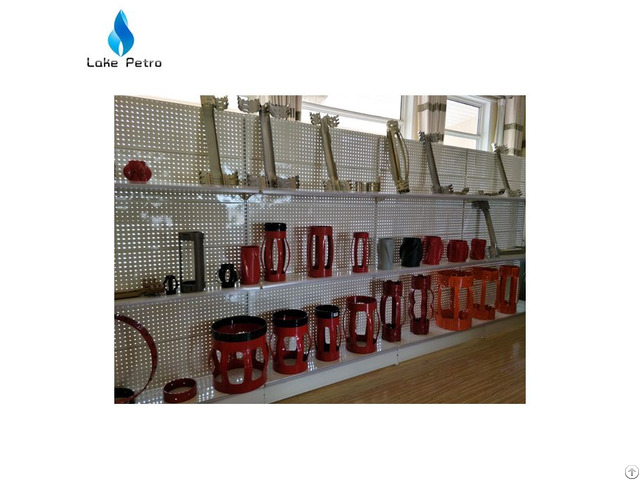

Centralizer Stop Collar For Casing And Tubing - China

A) Help casing center in oilhole during oilfield cementation B) Centralisers are designed with straight vane or spiral blade C) Best choice for Tight Tolerance Casing Applications.

D) Undergo special coating process to prevent from rust E) Specification: 4"---20".

Any special sizes or combination can available on request.

Advantage: 1) This is mild steel centralizer with friction factors between 0.25 – 0.35 - 2) Centralisers are all round teflon coating.

This provides much reduced friction factors as low as 0.1 - 3) This is an ultra low friction Thermoplastic rendering of the centralizer.

This uses a high tensile strength thermoplastic with fibrous teflon strips.

Friction factors are as low as 0.05 in fluid medium.

4) This centraliser is designed for the most rigorous applications where extensive reaming is required.

Casing Float Equipment We manufacture a wide range of float equipment.

Including standard float shoes, guide shoes, reamer shoes with eccentric and non-eccentric profiles to suit all objectives.

These float equipment can be configured for single or double API float valves integrated within the tool.

The valve system is an unique hydraulically powered float shoe with a wide application.

It can incorporate a rounded guide nose similar to a standard float shoe, or it can be slightly tapered to act as a guide shoe or can be configured with extensive reaming capabilities incorporating PDC cutters and/or hard facing.

All variants have the capability of a rotating head with side jetting configurations.

Float Shoe & Float Collar Material: P-110, K55, J55, N80

Thread Type: BTC, STC, LTC or BLANK THREAD

5, 000 & 10, 000psi Valves Available Double Valve Option Available Autofill Option Available New and Improved cementing process for valve retention Cement tested to 5000 & 10, 000psi Size Available: 5 1/2", 6 5/8", 7", 8 5/8", 9 5/8", 10 3/4", 11 3/4", 13 3/8", 16", 18 5/8", 20", 24"
