Automatic Acid And Base Tester Of Petroleum Products - China

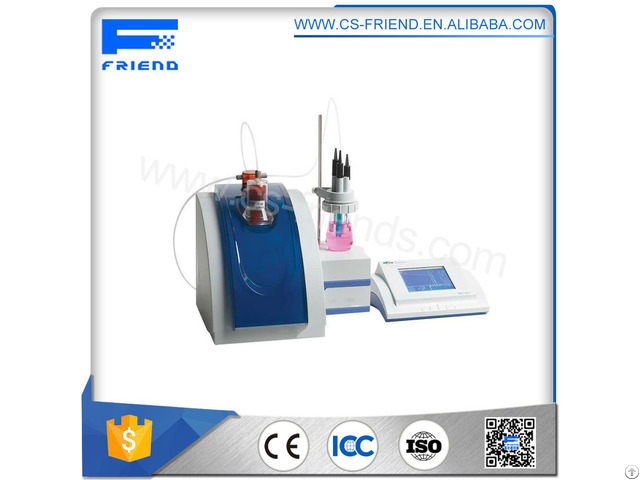

FDR-2271 Automatic acid and base tester of petroleum products

Scope

Compliance with SH / T 0251 "Determination of base number of petroleum products (perchloric acid potentiometric titration)" and GB / T 7304 "Petroleum products and lubricants and values assay (potentiometric titration)" standard experimental requirements

Features

1 - Computer control system, special software Chinese window interface, mouse, keyboard operation, man-machine dialogue, easy to understand.

2 - It can display the potential curve (E-V), the first derivative curve (dE / dV) and the electrode potential (E), the titration volume (V), the titration result and so on.

3 - The instrument uses the potentiometric titration method to automatically determine the end point of titration, and automatically calculate the results.

4 - The instrument has pre-titration, the default end titration, blank titration, manual titration and other modes, can also be based on user experiments to create their own dedicated mode to meet the different experimental requirements.

5 - Titration system using a corrosion-resistant materials, can be a variety of titration reaction.

Selection of different electrodes can be carried out: acid-base titration, redox titration, precipitation titration, complex titration, non-aqueous titration and other titration and pH measurement.

6 - Automatic cleaning, automatic rehydration, automatic value plus liquid.

Technical Parameters level: 0.05

1, measuring range:

pH: (0.00 ~ 14.00) pH mV: (- 1800 ~ 1800.0) mV Temperature: (- 5.0 ~ 105.0) ° C

2, Resolution: pH: 0.01pH mV: 0.1mV Temperature: 0.1 ° C

3, the basic error:

pH: ± 0.01pH ± 1 word mV: ± 0.03% FS Temperature: ± 0.3 ° C ± 1 word

4, Burette capacity Tolerance: 10ml Buret: ± 0.025ml 20ml Buret: ± 0.035ml

5, Burette resolution: 10ml Buret: 1/10000 20ml burette: 2/10000

6, burette infusion or infusion rate: (50 ± 10) s (Buret full degrees)

7, titration analysis Repeatability: 0.2% Titration control sensitivity: ± 2 mV

8 Stability: (± 0.3mV ± 1 word) / 3h

9, power source: AC (220 ± 22) V, (50 ± 1) Hz
