Api Stabilizers For Near Bit And String Types - China

Product Application

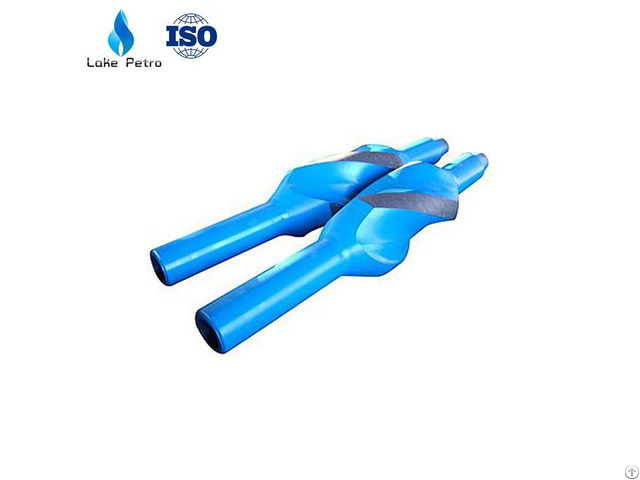

A drilling stabilizer is a piece of downhole equipment used in the bottom hole assembly (BHA) of a drill string.

It mechanically stabilizes the BHA in the borehole in order to avoid unintentional sidetracking, vibrations, and ensure the quality of the hole being drilled.

It is composed of a hollow cylindrical body and stabilizing blades, both made of high-strength steel.

The blades can be either straight or spiralled, and are hardfaced for wear resistance.

Several types of drilling stabilizers are used in the oilfield today.

While integral stabilizers (fully machined out of a single piece of steel) tend to be the norm, other types can be used, such as : Replaceable sleeve stabilizer, where the blades are located on a sleeve, which is then screwed on the body.

This type can be economical when no repair facilities are available close to the well being drilled and air freight has to be used.

Welded blades stabilizer, where blades are welded onto the body.

This type is usually not advised on oil wells due to the risks of losing blades, but is regularly used when drilling water wells or on low-cost oilfields.

Usually 2 to 3 stabilizers are fitted into the BHA, including one just above the drill bit (near-bit stabilizer) and one or two among the drill collars (string stabilizers).

Optional Stabilizers We offer several options for IBS, in both alloy steel and non-magnet materials: ● Spiral Integral Blade Stabilizer; ● Straight Integral Blade Stabilizer; ● Non-Magnet Integral Blade Stabilizer; When Ordering Please Specify: ● Hole size or required blade O.D.; ● Number of blades required (3 or 4 are standard styles); ● Straight or spiral blades; ● Hardfacing type ; ● Top and Bottom Connections; ● Body diameter required; ● String or Near Bit application; ● Alloy steel or non-magnet materials ; ● Special features SRG on connections, bored for float etc.
