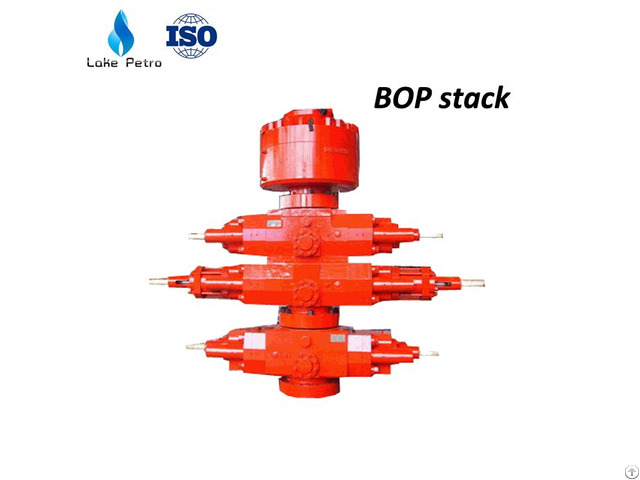

Api 16a Single And Double Ram Bop Blowout Preventer - China
price: 500000.00 Dollar US$
The series blowout preventer conform to API Spec16A and are granted the right to use API Spec 16A and Spec 6A monogram.
Product Features: 1 - Annular B0P Adopts sphere rubber core or tapering core structure.
The top and bottom connection is flange or thread.
Hydraulic Pressure: 8.4~10.5MPa.
Hydraulic connection: NPT1 - A Media: Oil gas & drilling fluid containing H2S.
Working temperature: : -29~121°C.
2 - Ram Blowout Preventer Hydraulically/manual operated locking mechanism.
Secondary seal.
Flat and side door structure or hydraulic control type flat door structure.
The side door and shell are connected by triple hinges.
Open and close the valve in sequence by using pressure bar(C type ram BOP) The guide frame is set at the end of the side door, when the side door is opened, the ram can be pulled out along the guide rail and the ram can be replaced(D type ram BOP) Pistons indicator.
Concealed oil way.
The cavity of ram is ellipse.
Hydraulic Pressure: 1200~1500PSI(8.4~10.5MPa) Hydraulic connection: NPT1 Working temperature: -29°C~121°C Media: Oil gas & drilling fluid containing H2S Ram size and type : series size pipe ram, reducing ram and cutter ram.
Please contact Michelle at lakepetro.
com
Company Contact:
- Posted By: Dongying Lake Petroleum Technology Co., Ltd
- Phone: +865467080021
- Address: Huanghe Road, Dongying , Shandong , China
- Email:
- Website: https://www.lakepetro.com
Published date: August 8, 2019
- Business Description: We are a supplier from China for Oilfield equipment and tools: BOP, Mud pump, Valves, pipes, Handling tools, Downhole tools, Solid control, Wellhead control, flanges, fittings and spare parts.
