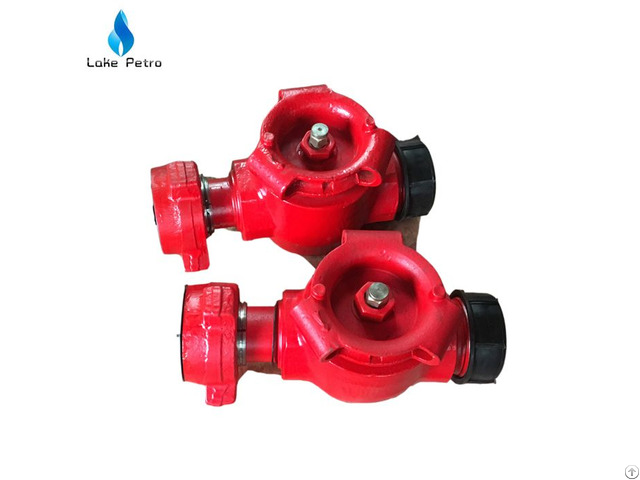

Api 16a Plug Valve With Fig1502 602 400 Hammer Unions - China

1 - Rigid stop design: rigid stop srew avoids breaking when the plug cap turns to limit position, causing switch limit inaccuracy.

2 - Easy operation: thrust bearing reduces pressurized torque which can save labor and ensure rapid shutoff when accident happens.

3 - Fool proofing device: an added fool-proofing pin between plate and valve body ensures no accidental locating during routine maintenance and installation.

4 - Special Sealing material: the backup ring of the body cap features special materials that allow for east assembly and disassembly 5 - Wave spring design: stainless steel wave springs prevent small particles from entering inside the valve seal area and enable a very easy disassembly 6 - Dual seals: Dual seals in the inner and outer grooves ensures sealing capacities even in severe service conditions.

7 - Excellent abrasion and corrosion resistance: Plugs are made from premium alloy steel, with special coating and heat treating process which greatly improves sealing capacities, abrasion and corrosion resistance 8 - Interchangeable design: replacing plate and plug cap with handwheel operator can meet different service applications.

9 - Fast assembly, high strength: integral plugs are designed a more compact valve and ensier maintenance.

10 - Improved seals: Special design of seal segments with standard O-ring improves sealing capacities and extends service life 11 - Special side segment design: Metal side segments will improve pressure containning capacity in limited space.

12 - Highly corrosive resistance: Seal rings are made from sepcial materials with impoved corrision resistance.

13 - Pressure containing parts: valve bodies are forged to meet NACE MRO0175 requirements for sour service.

13 - Dual seals: in the inner and outer grooves are made from HNBR which is soue gas resistant and low temperature resistant material.

The anti-extrusion metal ring added to the inner ting extends service life.
