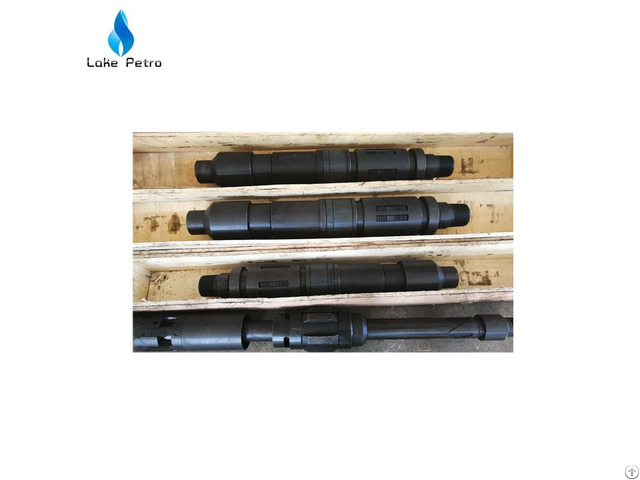

Api 11d1 Drillable And Retrievable Bridge Plug For Downhole Using - China

1 - USAGE

Many of the outstanding features of our wireline plugs and packers have been incorporated into the Models 'MMB' and 'STWB' Bridge Plugs.

Both are rugged, compact units engineered for fast running downhole on either tubing or electric wireline.

Positively-secured packing element and one piece slips combine to resist premature setting due to well debris or rough handling and assures protection from the hazards of high-speed running in the well.

The flat metal backup rings prevent extrusion of the rubber at high pressure and temperature.

Because of their design, the metal-to-metal contact developed by these backup rings is made more secure by pressure increases.

An internal ratchet lock ring retains the dynamic force induced in the retainers during the setting operation.

This simple mechanism assures continued compression of the packing elements regardless of pressure differentials.

Case-hardened, one piece slips, designed to bite into the hardest casing, are located at each end of plug - final assurance of plug pack-off security.

When the need arises, these slips are easily drilled out.

2 - FEATURES

• Sets securely in any hardness casing, including premium grades;

• Ratchet lock ring secures dynamic setting force;

• One-piece packing element and flat metal backup rings which combine for superior seal;

• Rated to 10, 000 psi at 300 Deg F;

• 350 Deg F and 400 Deg F element available upon request;

• Case-hardened, one piece slips virtually eliminate premature setting, yet are easily drilled out;

• Locked together design and extra clearance safely speeds run-in;

• Fin bottom to aid in preventing "Spinning" during drillout;

• Can be set directly with Baker or SWSB/SWSG Wireline setting tools and can be set with Baker or SHSB/SHSG HYD.

setting tools also;

• Shear studs are Baker style and connect directly to Baker Adjuster Sub;

• Crossovers are not required.
