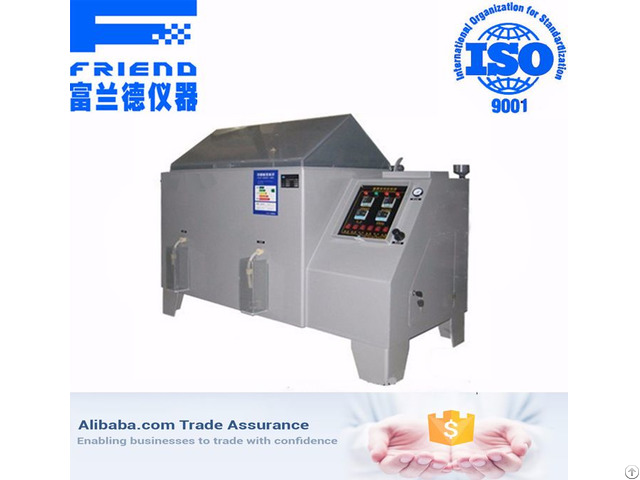

Anti Rust Oil And Grease Salt Spray Test Machine - China

Scope

This product is to simulate the atmosphere composed of tiny droplets of salt spray dispersion environmental equipment, are widely used in electronics, electrical and automotive, aerospace, mobile communications, motorcycles, plastics, machinery parts, electronic components, metal surface of the material, in whole or protective layer salt spray corrosion test.

Features

1 - Its key components imported components, low failure rate, good stability;

2 - It innovative use of water detection technology, eliminating the inconvenience of artificial water;

3 - It using PID temperature control technology, precise temperature control;

4 - It with glass viewing window, good visibility.

Technical Parameters

1 - Saturated air barrel In stainless steel, thickness 2mm, along with automatic water level controller, eliminating the inconvenience artificial water temperature, according to CNS, JIS, ASTM type can be set.

Salt test method: Laboratory: 35 °C±1°C Saturated air: 47 °C± 1 °C Corrosion test method: Laboratory: 50 °C± 1 °C Saturated air: 63 °C± 1 °C 2 - Spray method

Tapered disperser: adjust the size of the spray and mist off the fog can mean.

Nozzle: PYREX glass nozzle material of precision glass nozzle, original imported from Taiwan Spray: 1 ~ 2mL/80cm 2 Ihr 3 - Defog mode

Squeezing the air is discharged through the mist 4 - The control system

Test chamber temperature control 0 ~ 99.9 °C Precision 0.1 °C(Dual Digital Display) Taiwan made VT4810 PID automatic calculation 1 - Expansion of the liquid Heating method tank safety temperature controller 0 ~ 110 °C 2 (Western made) Saturated air barrel temperature controller 0 ~ 99.9 °C, Precision 01 °C(double number display) Taiwan made VT48 automatic calculation 1 - Time controller: ANV AH5R-2 1 Plot device: 0 ~ 9999.9 hr, Taiwan made RISESEN 1 only A pressure adjusting: 1 - Once Regulator: with pressure gauge group 1 (first regulator in 2 ~ 2.5Kg/cm)

2 - Quadratic regulator: Taiwan-made regulator 1/4 “PT, pressure 0 ~ 4.0 Kg / cm 2 adjustable (spray pressure regulator on 1.0Kg/cm 2)

3 - Gauge: 2 Kg / cm 2 1 only, and Precision of 0.1 Kg / cm 2.

French imports Illuminated Push Button Switch Push Button continuous ten thousand times.

Taiwan-made STON LY2N protected relay 2 Taiwan-made STON MY2N maintaining relay 4 YCT V2A702-03 Solenoid valve 4 5 - The safety device

Water level controller a group Status warning light 3 over-temperature protection switch two groups

6 - Power Source: AC1 220V 15A 50HZ

7 - The Test Room: Germany PVC gray impact resistance plate temperature, thickness 6mm

8 - Water Bath: Germany PVC gray impact resistance plate temperature, thickness 6mm, along with automatic water level controller, eliminating the inconvenience of artificial water

9 - the test chamber cover: European temperature using transparent acrylic sheet having a thickness 5mm

10 - Supplementary reagent tank: Hidden with water table, using the German shock-resistant gray PVC board, thickness 5mm, with the appearance of the machine into one

11 - The laboratory basket: mining PVC gray temperature angles, the angle can be adjusted freely experiment 15º and 30º angle.

1 - As a 15-degree angle to place the specimen can be placed 20

2 - As a 30-degree angle to place the specimen can be placed 15

Note: Specimen size is 150 × 70mm (H × D)

12 - Dimension: 1100 x 670 x 1180 mm

13 - Room size: 600 x 450 x 400 mm
