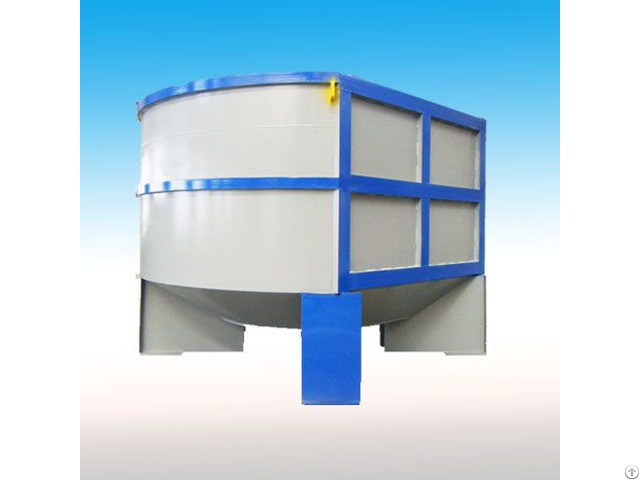

Type D Hydrapulper - China

Application:

Used in paper and pulp industry for breaking waste paper and wet-strength paper.

This equipment is fitted with P.S. Vokes rotor, which can strengthen hydraulic cycle and fiber defiberizing and also perform continuous breaking with lower energy consumption.

Rotor deviates from the center of trough body and trough body structure is D-shape, which can make the contact between pulp and rotor quicker, with higher frequency.

Thereby, on condition of not increasing power and volume, capacity can be increased.

Rotor and extraction disc are above the bottom plane of trough body, thus, one low-pressure flow area can form around rotor to gather heavy impurities, thereby the service life of rotor and extraction plate can be extended.

Main Technical Parameters:

Type HT-25 HT-26 HT-27 HT-28 HT-29 HT-30 HT-31 HT-32 HT-33 HT-34 HT-35 HT-36 HT-37

Nominal volume: m3 15 20 25 30 35 40 45 50 60 70 80 100 130

Treating consistency: % 3-5

Capacity of product : t/d 80-120 140-180 180-230 230-280 270-320 300-370 350-400 400-450 480-550 550-630 600-700 750-850 950-1050

Power of motor: kw 160 185 220 280 315 355 400 450 560 630 710 900 1000
