Qmy1200p 1300p 1500p Automatic Die Cutting Machine With Stripping Unit - China

Main Features:

The Bobst type cut structure makes the cutting platform movement like a scissor, it will realize a full and easier cut.

Main worm gear uses alloy copper material, after the experienced operator’s manual scraping treatment and strict standard testing, it can ensures the driving parts 10 years life.

The main chains adopt imported British Renold brand, the differences of 10 chains are less than 0.2mm.

The connect between gear box and driving shaft adopts sleeve and pin structure ensuring a strong connection.

a)Speed: The machine adopts frequency controller to achieve stepless speed acceleration which can reach to 5000 times per hour.

During actual production, it can generally run at 3600 to 4200 times per hour according to the quality of the board.

If the quality of the paper is good, a good operator even can operate the machine at highest speed.

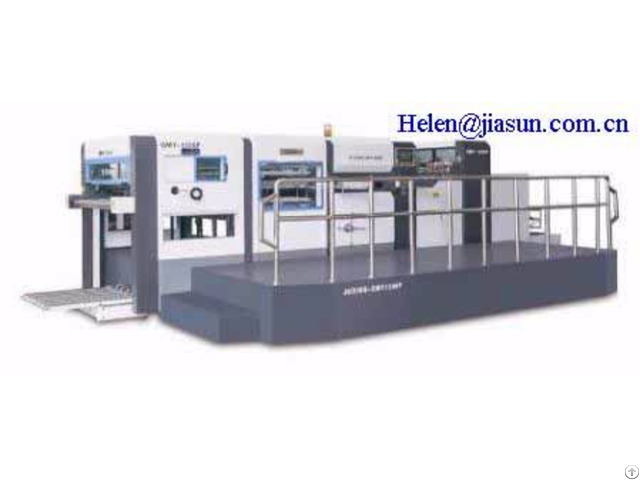

b)Safety: As it is shown in the picture of the machine, the machine adopts rear part paper feeding method which keeps the operator away from the die-cutting part.

The mounting and adjustment of the die plate is also done outside of the die-cutting part with sensors and detectors at die-cutting part to ensure that the machine can not be started when the die-cutting plate is at adjustment status.

Besides the sensors at die-cutting part, there are sensor or approach switches at window part to make the whole machine at monitoring status to ensure its safety.

c)Operation convenience: There is Man-machine interface installed in the control panel which will shows the safety status of the machine as well as malfunctions to facilitate the operator.

Camera is also installed in front of the operator for him/her to monitor the operation status at the delivery part.
