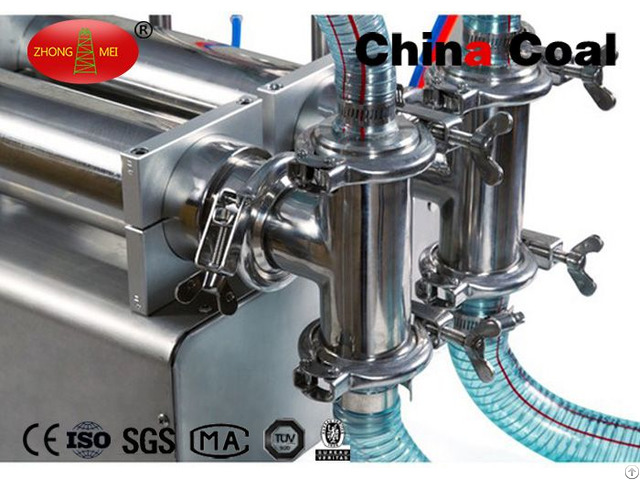

Pneumatic Type Filling Machine For High Viscosity Liquid And Paste - China

china coal001

Pneumatic type filling machine for high viscosity liquid and paste water filling machine, automatic bottle filling machine, automatic liquid filling machine, water bottle filling machine Introduction of Pneumatic type filling machine for high viscosity liquid and paste 1 - Paste /liquid filling machine is suitable for quantitative filling in chemical, food, cosmetic, pharmaceuticals, pesticides, oil and other industries such as liquid, paste, sauce, particles and other substances.

2 - Horizontal pneumatic paste filling machine, cylinder, chassis and hopper are made of stainless steel, pistons are made of PTFE, pneumatic parts are imported pneumatic components, compliance with GMP requirements.

3 - Filling quantity and filling speed can be adjust, foot switch and automatic filling function, high precision, simple structure and easy operation.

Applications of liquid detergent filling machine

They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials;

Typical application: used for filling liquidity is good material, such as filling liquid and paste material, such as water, oil, juice, detergent, sauce, salad, butter, margarine, ketchup, jam, cream, honey, shampoo etc.

Suitable for various packing such as bottle, jar, can, cup, bag, barrels, etc;

Parameter of Pneumatic type filling machine for high viscosity liquid and paste Modle G1WY-100 G1WY-300 G1WY-500 G1WY-1000 G1WY-3000 G1WY-5000

filling speed 10-35n/min(take water for example

filling range 10-100ml 30-300ml 50-500ml 100-1000ml 300 -3000ml 500-5000ml

air pressure 0.4~0.6mpa

filling erro ±1%

machine size 806(L) × 180(W) ×690(H)m 880(L) × 230(W) ×665(H)m

880(L) × 230(W) ×665(H)m 1065(L) × 230(W) ×690(H)m 1250(L) × 400(W) ×300(H)m 1390(L) × 420(W) ×380(H)m

weight 42kg 45kg 48kg 52kg 64kg 86kg
