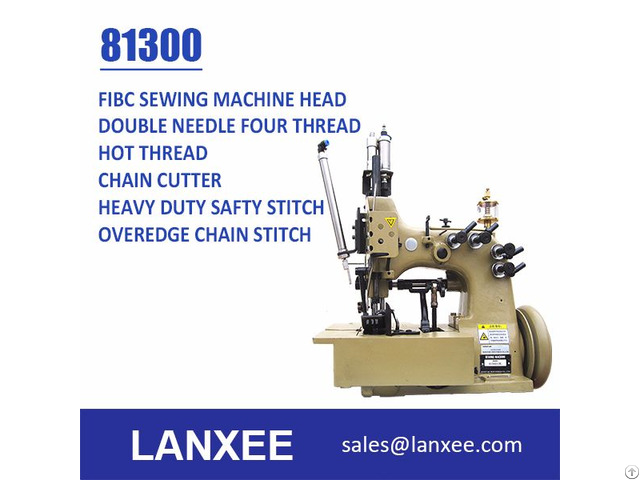

Lanxee 81300 Double Needle Four Thread Fibc Bag Sewing Machine - China
price: 3000.00 Dollar US$
81300 double needle four thread safety stitch bag sewing machine with double thread overedge and an additional double chain stitch.
Its design and pedestal installation makes it especially suitable for side seams on very heavy duty container bags.
Machine equipped with top and bottom guides for polypropylene filler cord for sealing the needle punctures.
Plain and alternating upper feed with built-in electro-pneumatically operated presser foot and upper feed dog lifter, pneumatic presser foot spring.
Advanced and latest designed built-in electro-pneumatically operated hot thread chain cutter are equipped at the left side of needle.
The needle positioner is provided by servo motor drive unit with very comfortable operation.
Stitch Type 401.502 SSa-2
Needle Distance 5.0mm
Overedge Width 10mm
Total Seam Width 15mm
Sewing Capacity 20mm
Standard Needle 9853GA430/172
Stitch Range 6-13mm(Standard Setting 10mm)
Speed 1, 400rpm
Drive Motor 750W Servo Motor
Presser Foot Lifter Electro-pneumatically
Cutter Heat
Air Presser 4kg/cm3
Air Consumption 10Nl/min
Lubrication System Manual Oiling with Sight Feed Oiler
Company Contact:
- Posted By: LANXEE INDUSTRIES CO., LTD
- Phone: +86-029-81109874
- Address: No. 1, Rome Scenery, High-Tech Zone, 710065 Xi'an, P.R. China, Xi'an , Shannaxi , China
- Email:
- Website: http://www.lanxee.com
Published date: July 21, 2016
- Business Description: Lanxee specialized in bag closing machinery, automatic bagging systems, heavy duty sewing machines and other industrial products, and the parts.
We have the most complete products line for customers' needs, and integrate all the best resources in China and develop the most advanced technology to make the most suitable solutions and equipments for clients.
