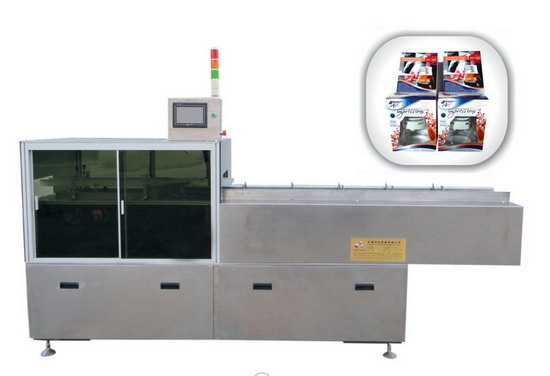

Gt 60 Automatic Side Load Case Packer Sealed Sides 65374 - China

Application:

GT-60 Automatic side load case packer is suitable for packing the slice goods like plaster posted with carton or box.

For example: plaster posted, Antifebrile posted, Hemostatic posted, eye mask and so on.

GT-60 Automatic side load case packer can put the goods with specification book into the carton automatically.

Feature:

1 - GT-60 Automatic side load case packer can automatically finish the working of carton forming, goods delivery, specification book delivery and sealing both sides of carton.

2 - Both sides of carton can be sealed by two ways: Faucet and spraying hot melt glue.

3 - GT-60 Automatic side load case packer is controlled automatically by PLC, and speed is adjusted by frequency control system.

Many of electrical appliances are made by international famous brand.

For example: Japan OMRON PLC, SMC pneumatic element, Germany BECKER vacuum pump and Switzerland Robatech hot melt applicator.

4 - GT-60 Automatic side load case packer can be operated manually or automatically.

Two ways can be shifted freely.

And the machine can stop automatically if overload happen.

5 - GT-60 Automatic side load case packer can detect position of tray.

It will not spray the glue when the tray is not in position.

6 - GT-60 Automatic side load case packer can check whether the quantity of goods is right and there is the specification book in the box.

Servo motor push the goods move forward.

Technical parameters

Capacity 40～60 box per min

Carton dimension L (100～250)×W (40～160)×H (20～60)mm

Thickness of carton 250～400g/m2

Air pressure 0.6～0.8Mpa

Gas consumption 150-200L/min

Power consumption 380V 50HZ

Total Power 3kw

Specification book size

(has been folded) Length(60-210mm) ×width(20-80mm)

Thickness of Specification book 40g-80g/m2

Machine Dimension 3000×1400×1600mm

Machine Net Weight 1800Kg

Gt 60 Automatic Side Load Case Packer
