Fully Automatic Pallet Top Foil Wrapper For Dust Protection And Water Proof - China

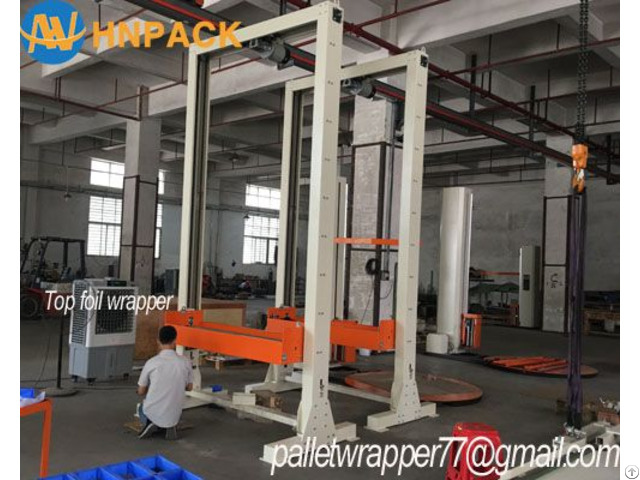

The Hennopack pallet top foil cover MT107T is an automatic dust proof top sheet dispenser.

During transport of the pallet a top sheet is rolled off and placed on the pallet.

The length of the film in front of and behind the pallet is adjustable via the touch screen.

The top sheet film is placed before wrapping.

This ensures that the pallet is sealed dust-tight.

The carriage is fitted with double suspension with fall protection.

Every MT107T is standard equipped with a special antistatic system that makes use of ionisation rods.

The top sheet dispenser can be brought to a position just above the roller conveyor level.

Quick and simple roll replacement is possible, in part, because the film roll lies on two rollers with no shaft through the middle.

The main frame consists of two robust columns, which are constructed from tubular profiles with robust folded plate 6 mm thick.

Item Parameters

Pallet size L: 1200mm, W: 1200mm, accept customized design

Wrapping Height 1800mm, accept customized design

Wrap speed max 40 pallets/hour

Top sheet pulling speed 3 – 12 meters/min

Conveyor Height 500±50mm

Top sheet lifter motor 0.37kw

Air Press 0.4~0.7 Mpa

Top sheet cut method motor driven knife

Control System PLC program logic control+Touch Screen

Working Mode Fully Auto unmanual

Power Supply 3PH 380VAC, 50/60Hz

Top Sheet type PE film, thickness 50-75microns, width1600-1800mm, net weight 120kgs max
